FCS CoLD WORD Tool Steel OEM Factory

COLD WORK TOOL STEEl

High-Quality Cold Working Tool Steel Solutions

Our extensive range of cold working tool steel products includes some of the most sought-after grades:

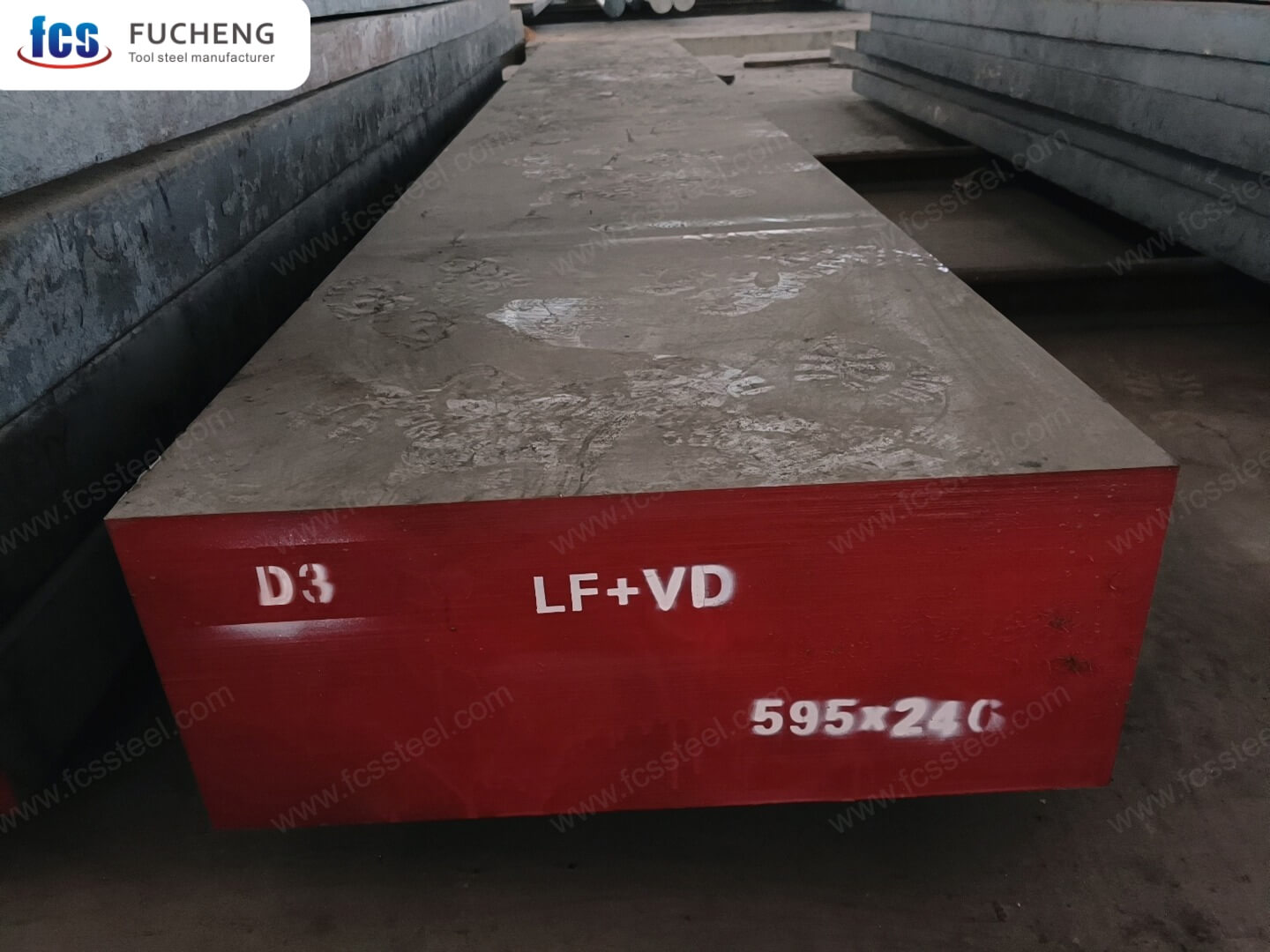

  • D3 (SKD1/1.2080/X210Cr12/X12/K100/Cr12): Renowned for its wear resistance and ability to hold a sharp edge, making it ideal for applications requiring precision and durability.
  • D6 (1.2436/X210CrW12/Cr12W): Known for its excellent toughness and high wear resistance, suitable for applications where longevity is crucial.
  • 1.2601 (X12MΦ/X165CrMoV12/Cr12MoV): A versatile steel that offers high hardness and exceptional wear resistance.
  • D2 (SKD11/1.2379/X155CrVMo12-1): A high-carbon tool steel known for its outstanding abrasion resistance and toughness, often used in cold work tooling applications.
  • 9CrWMn (O1/1.2510/DF-3/K460/SKS3/100MnCrW4/9XBГ): A high-performance tool steel that provides excellent hardness and wear resistance in demanding environments.
  • DC53 (Cr8Mn2SiV/K340): A premium cold work tool steel offering outstanding wear resistance and form stability, ideal for high-precision tooling.
Get A QUote

Core properties of FCS cold work tool steel

Ultra-high hardness and wear resistance

Cold work tool steel has excellent hardness (up to 60-64 HRC after heat treatment) and wear resistance through the scientific ratio of high carbon, high chromium (e.g. Cr content of 11%-13%) and alloying elements such as molybdenum and vanadium, which is suitable for high-load stamping, cutting and mold making and significantly extends the life of the tool.

Excellent corrosion and high temperature resistance

Chromium forms a dense oxide layer to resist corrosive media; molybdenum enhances high-temperature stability to ensure stable performance under complex working conditions.

Precision machining and heat treatment adaptability

The material has excellent processing performance after annealing, supporting the molding of complex molds; quenching + tempering process to flexibly adjust the balance of toughness and hardness to meet customized needs.

Wide range of applications

Covering automotive molds, precision tools, stamping dies, aerospace components, etc., suitable for high-speed cutting, cold extrusion and other high-precision scenarios.

Extensive manufacturing experience:

With 18 years of experience, we specialize in manufacturing premium tool steels including cold work, hot work, plastic tool steel, and high-speed die steel. We adhere to various international standards such as GB, ASTM, DIN, JIS, ГОСТ, EN, ISO, and AISI. Trust us for precision and quality in die steel solutions.

Tool Steel Factory Visit & Services:

We warmly invite clients to visit our tool steel manufacturing facility for a firsthand look at our production processes. To ensure a seamless experience, we offer complimentary airport pickup and accommodations during your stay. A dedicated staff member will accompany you throughout the visit, providing detailed insights into our operations, quality control measures, and customization capabilities. Let us arrange a personalized tour tailored to your specific interests and requirements.

Premium Tool Steel from Direct Manufacturer

As a leading manufacturer of high-quality die steel and tool steel in China, we specialize in delivering an extensive range of products, including cold work tool steel, hot work tool steel, plastic tool steel, high-speed die steel, and stainless steel. By sourcing directly from our factory, we eliminate middlemen and pass on significant cost savings to our clients, ensuring you receive the best possible price without compromising on quality.

Stable supply capacity:

Specializing in cold work tool steel, we maintain a robust production infrastructure with ISO 9001 certification. Our facility holds over 2,000 tons of ready stock and produces 2,000 tons monthly, ensuring reliable supply. With a 25,000-ton annual capacity, we deliver high-quality materials for diverse industrial applications.

SIZE RANGE

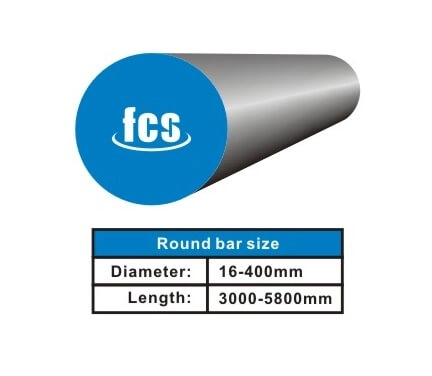

  • Round Bar:
Diameter:16-400mm;Length:3000-5800mm.

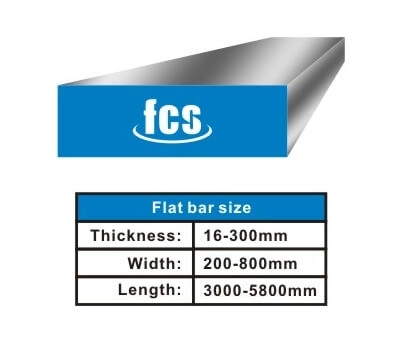

  • Flat bar:
Thickness:16-300mm;Width:200-800mm;Length:3000-5800mm
cold or hot work tool steel size range
cold work tool steel ; hot work tool steel Flat bar ;size range;stainless steel ;manufacturer;plastic tool steel;high-speed tool steel

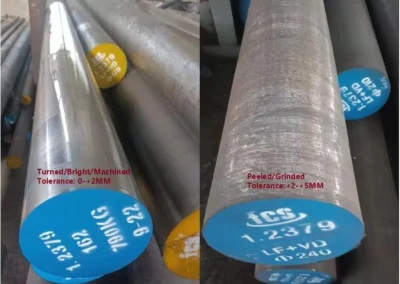

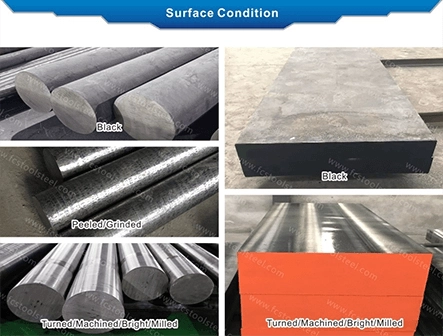

SURFACE CONDITION

  • Black；
  • Peeled/Grinded；
  • Turned/Machined/Bright/Milled
  • Customized services available upon request
tool steel;cold work tool steel;hot work tool steel;plastic tool steel;high-speed tool steel;stainless steel
tool steel;cold work tool steel;hot work tool steel;plastic tool steel;high-speed tool steel;stainless steel

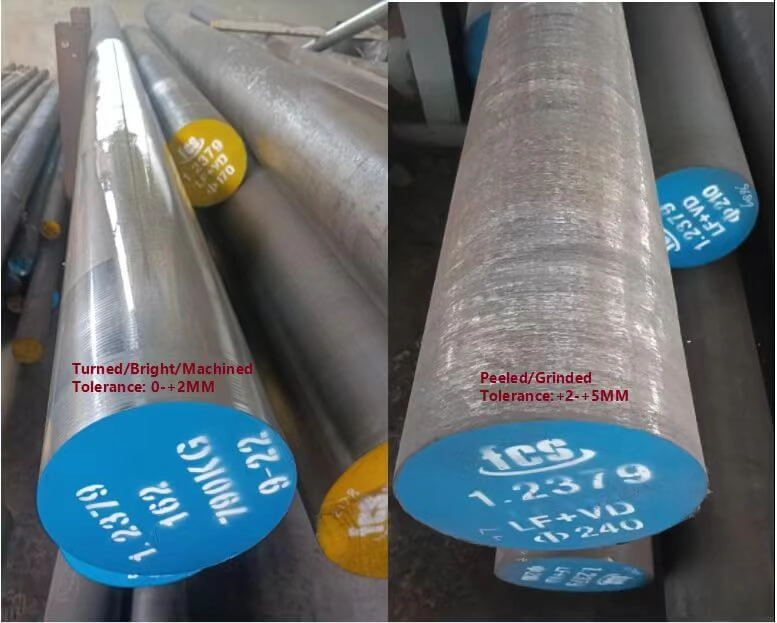

turned or peeled

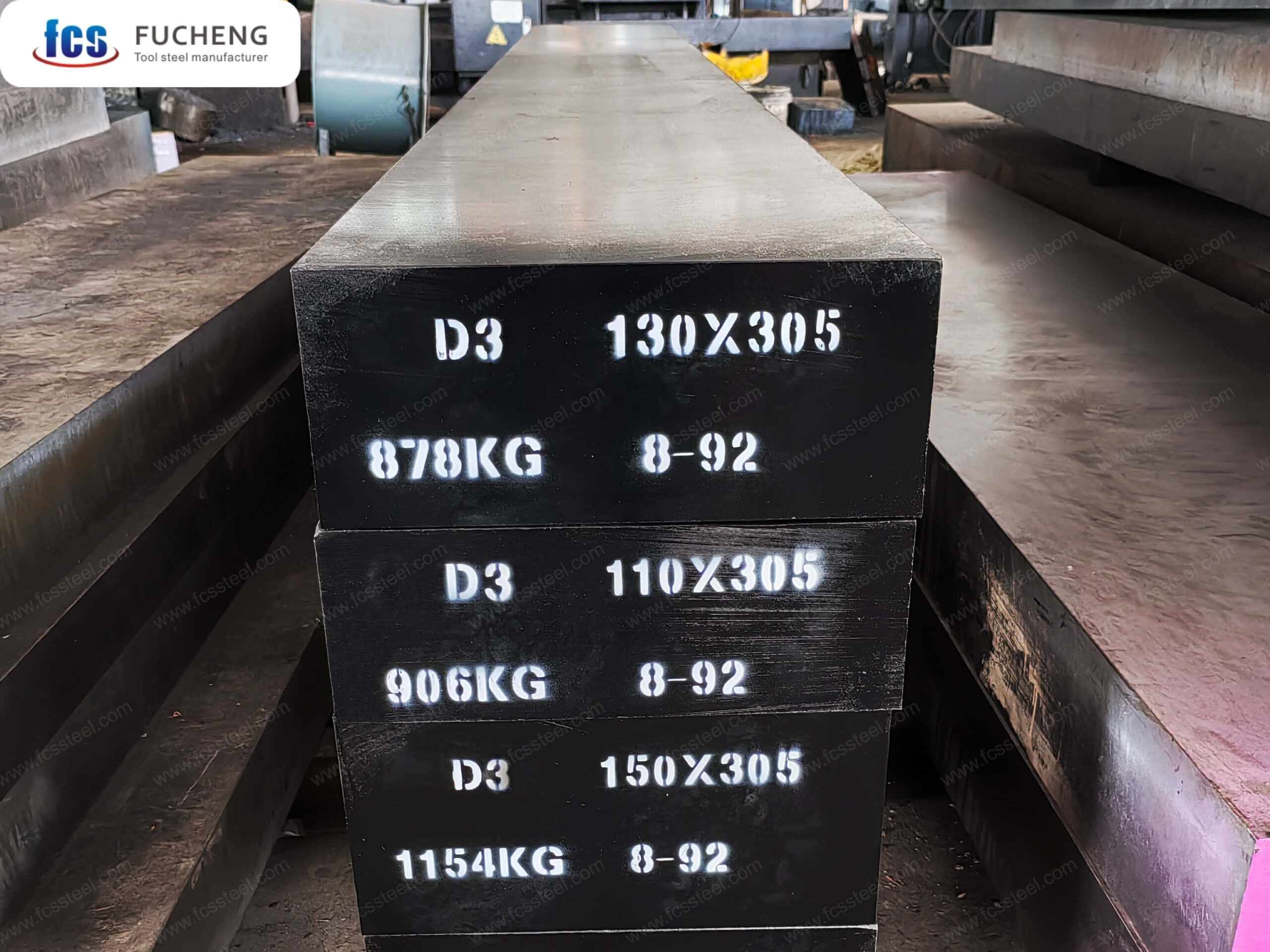

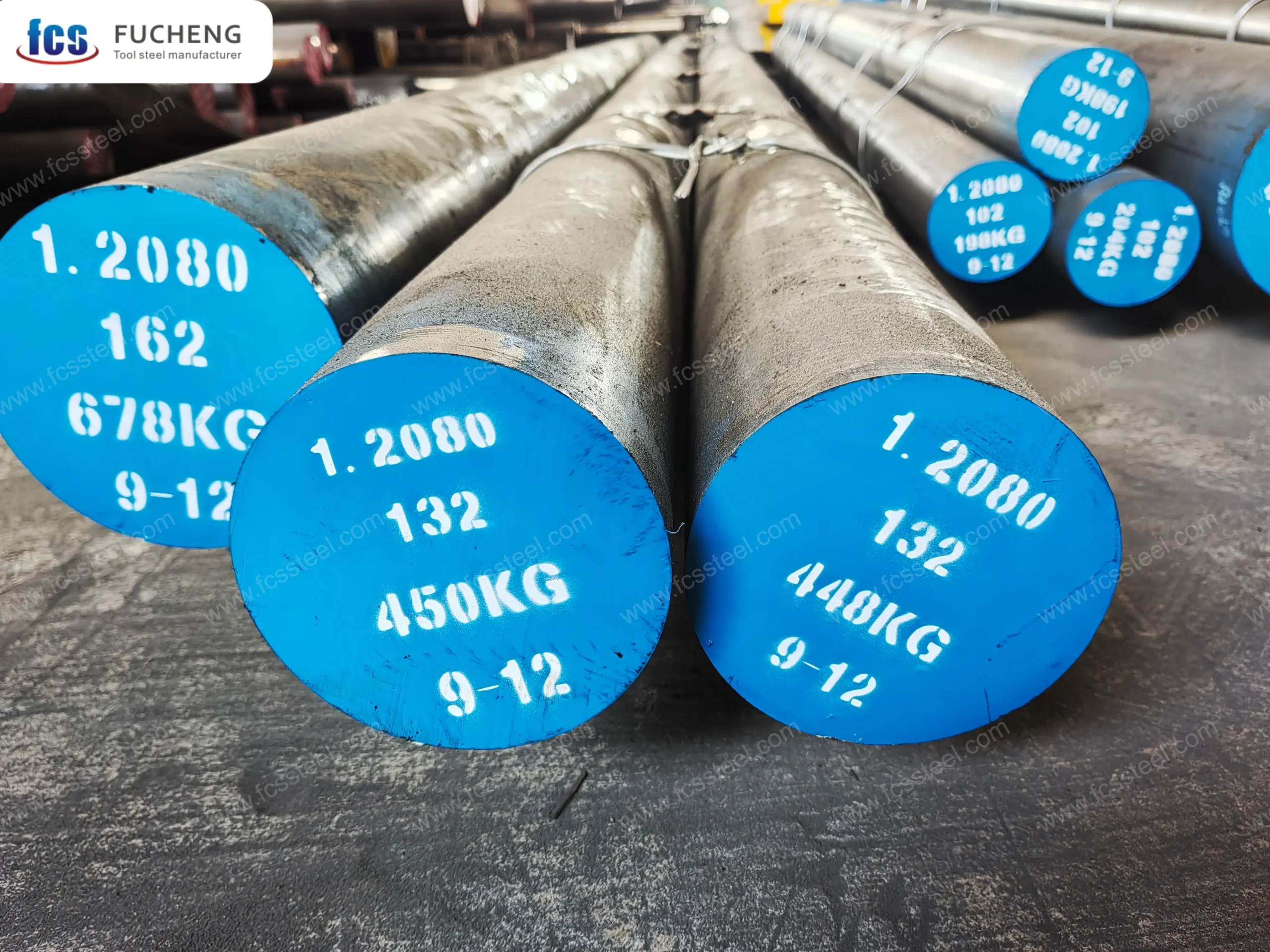

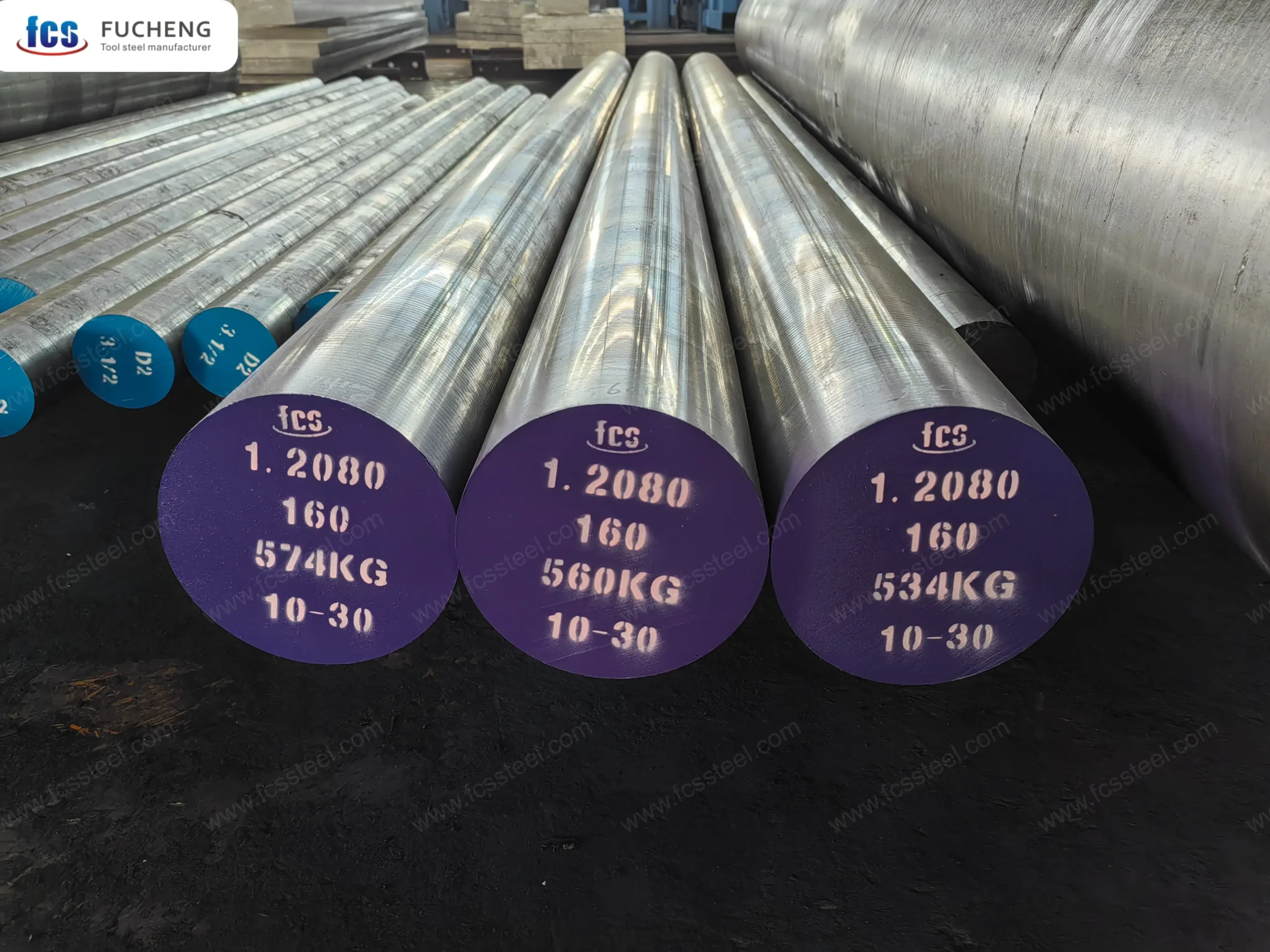

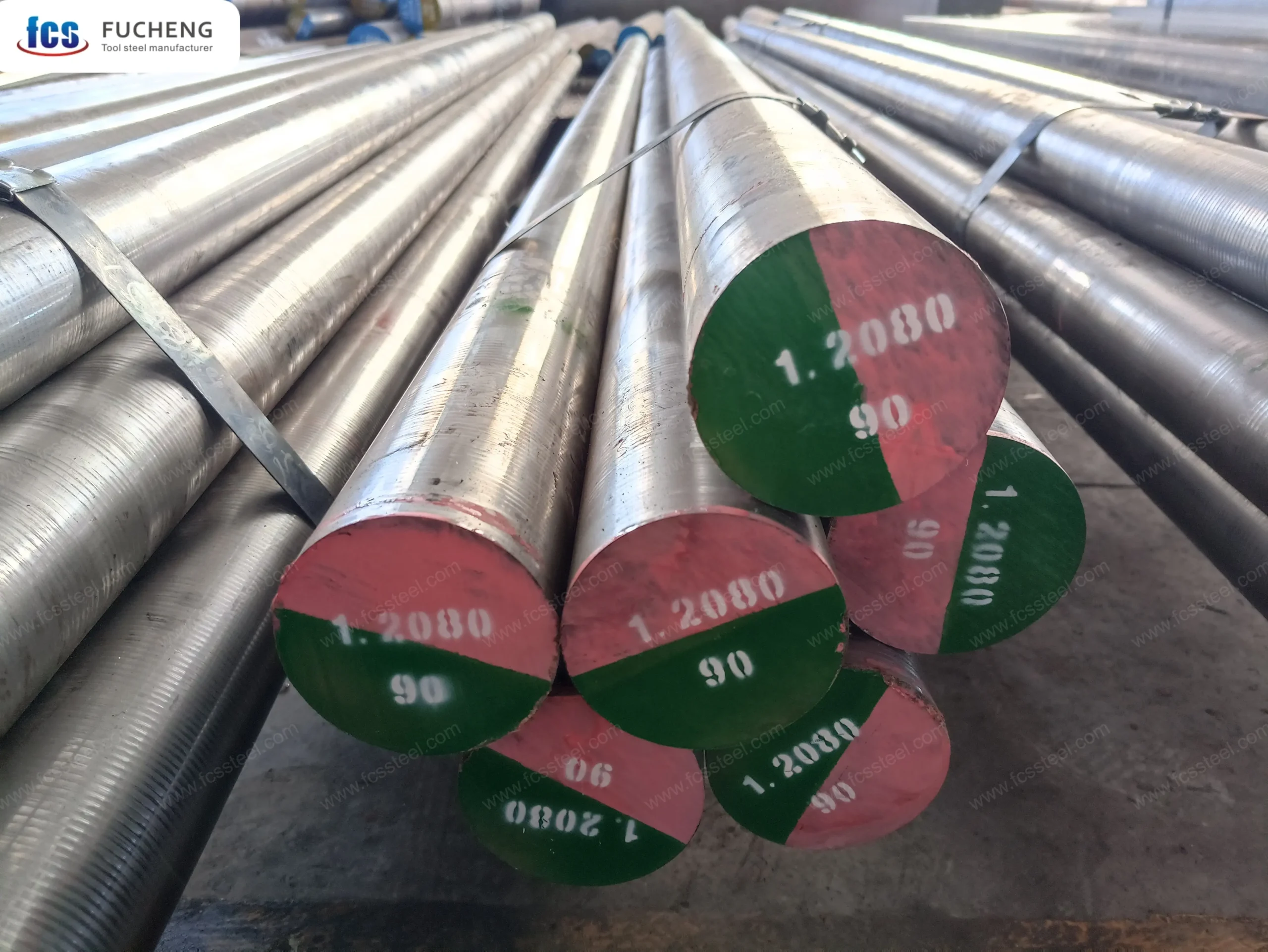

1.2080

TOOL STEEL GRADES

German(DIN/W-Nr):X210Cr12/1.2080
Japen(JIS):SKD1

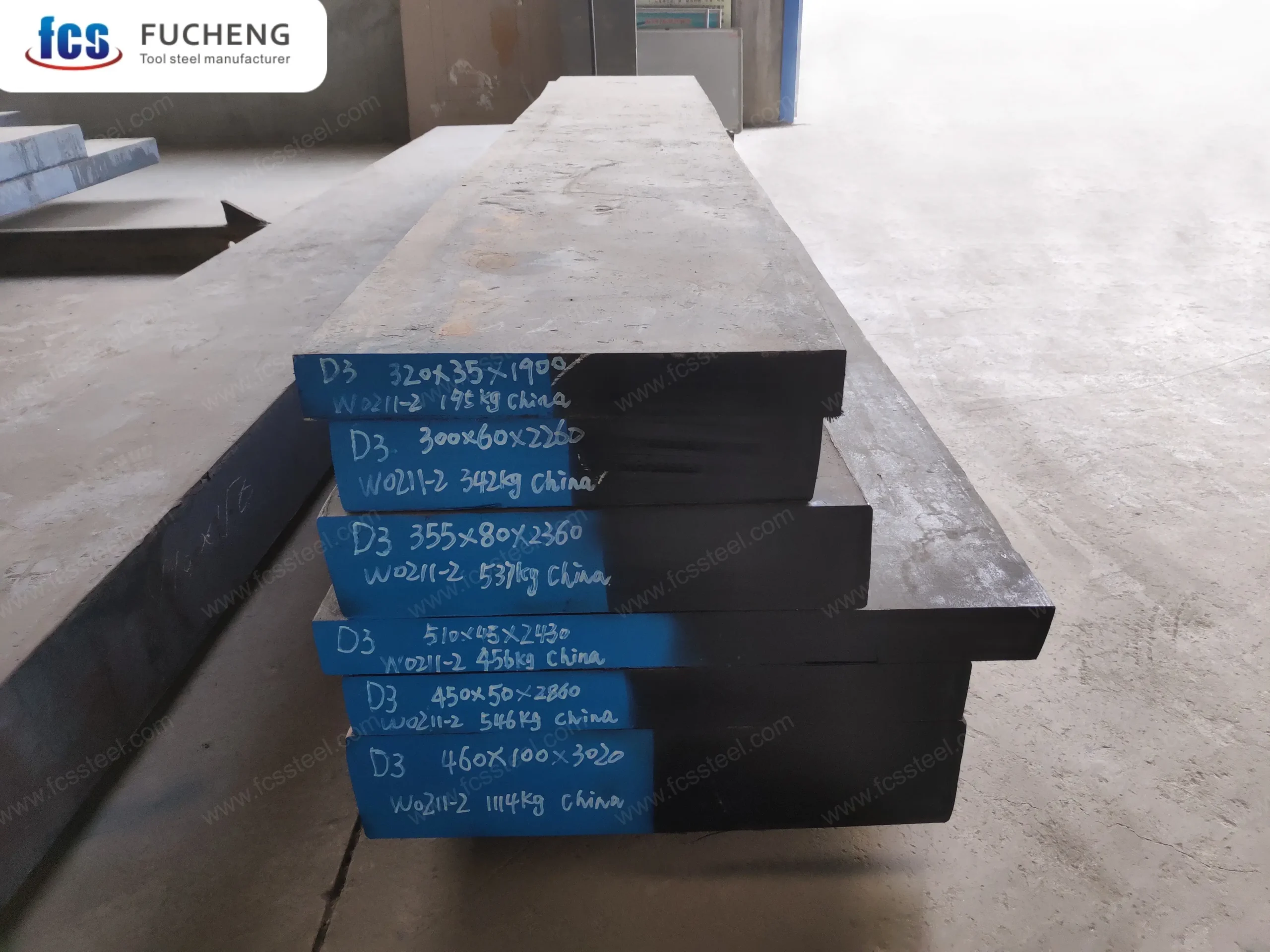

U.S.A(ASTM):D3
Russia(ГOСТ): X12

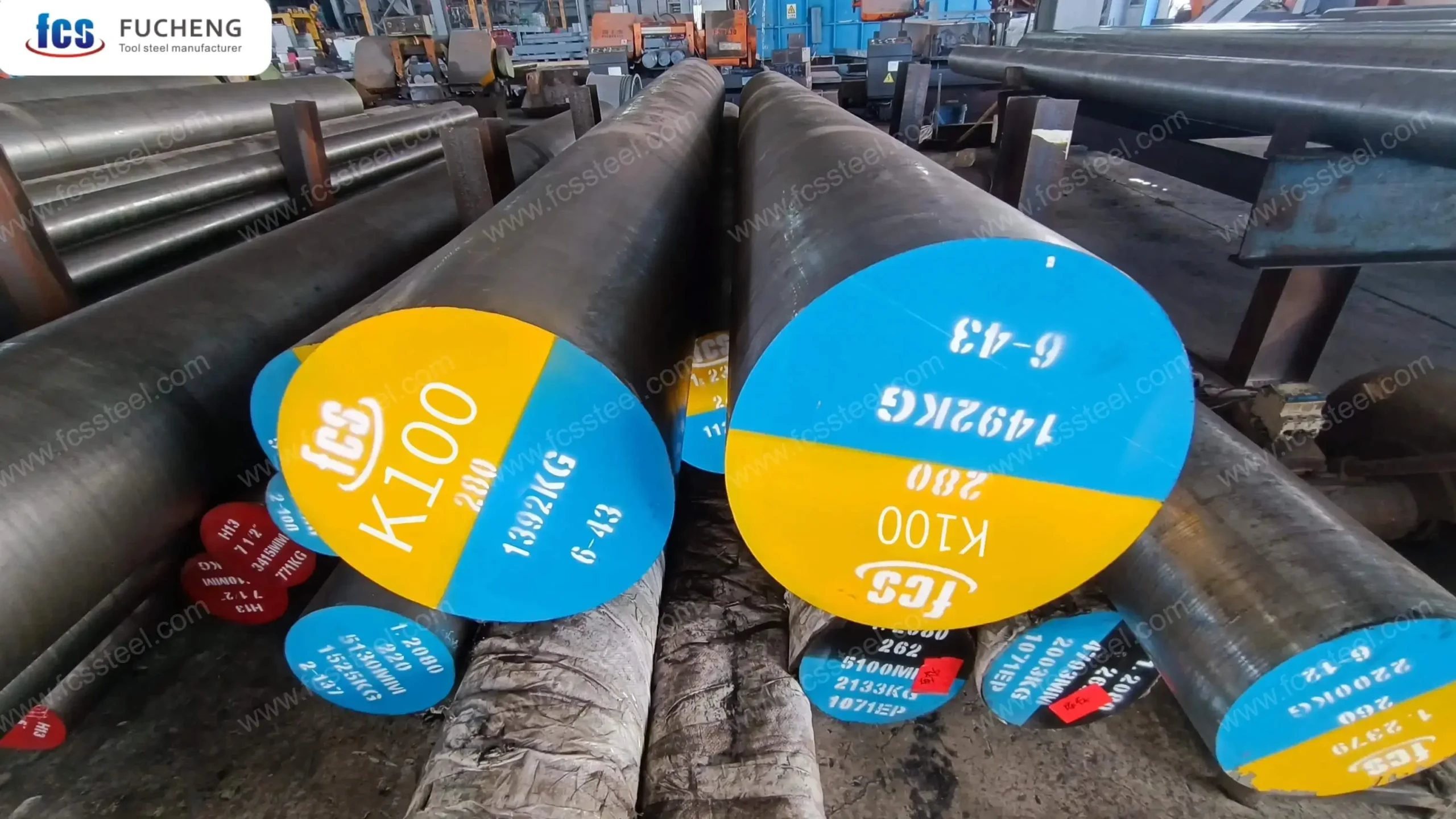

Austria(BOHLER):K100

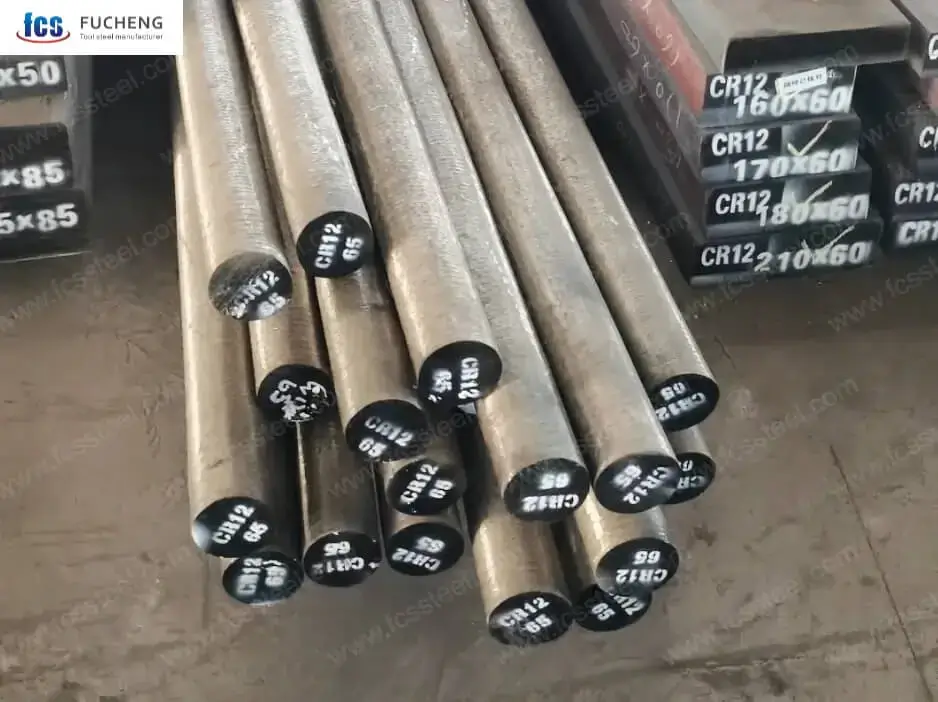

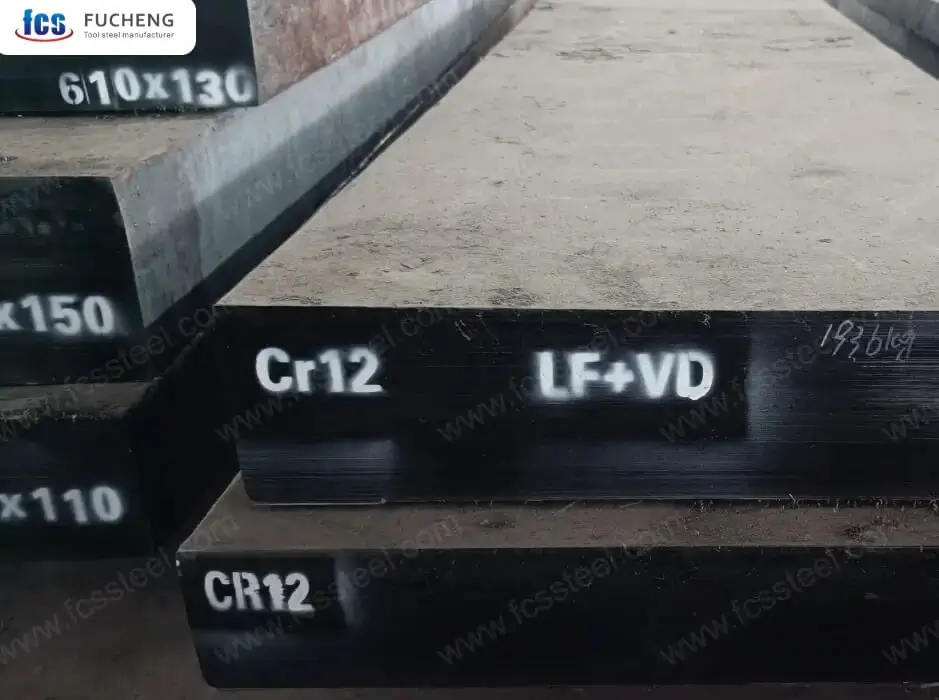

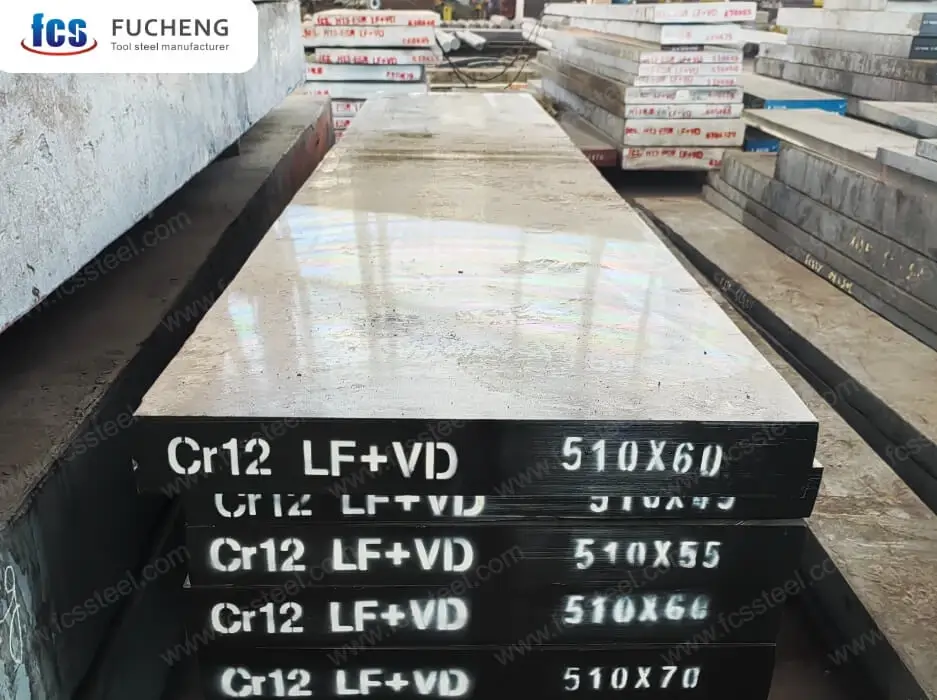

China(GB):Cr12 Tool Steel

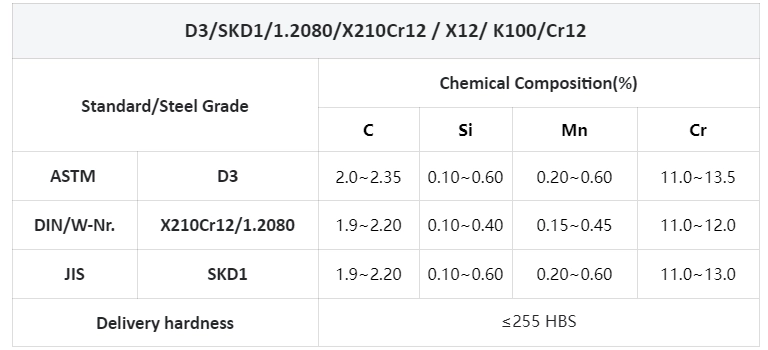

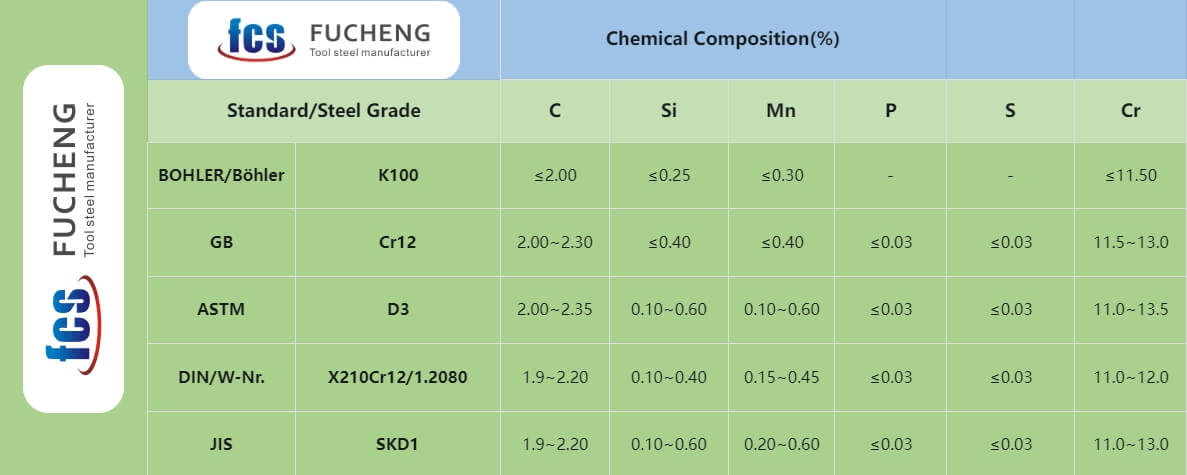

1.2080 & Its Equivalents

1.2080 (DIN/Germany), is a high carbon, high chromium cold work tool steel. It is also known as SKD1, D3, Cr12, X210Cr12, K100, or X12, and is known for its excellent wear resistance. Key properties include dimensional stability, medium toughness and resistance to abrasive wear. Its composition (1.9-2.2% C, 11-13% Cr) forms hard chromium carbide. It can be heat-treated to a hardness of 58-64 HRC, and if you want to increase its wear resistance, it can be ground and polished. Many people tend to confuse AISI D3 with D2 tool steel. Because the application of D3 is similar to D2 tool steel. But alloy tool steel D3 has better wear resistance of both steels.

cold work tool steeel

APPLICATION

This versatile cold work tool steel is perfect for various demanding uses, including:
– Punching Dies: Perfect for silicon steel sheet punching, offering precision and durability.
– Thread Rolling Dies: Engineered for creating strong, high-quality threaded components with minimal wear.
– Drawing Dies: Designed for effective metal drawing applications, ensuring consistent shape and performance.

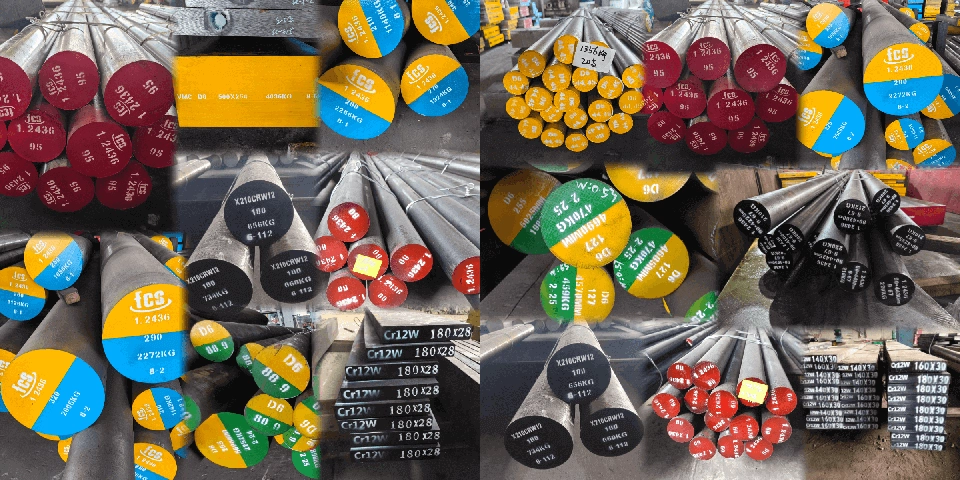

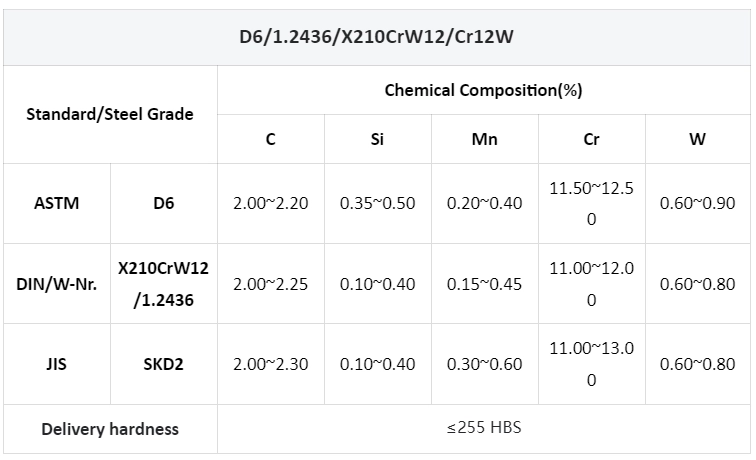

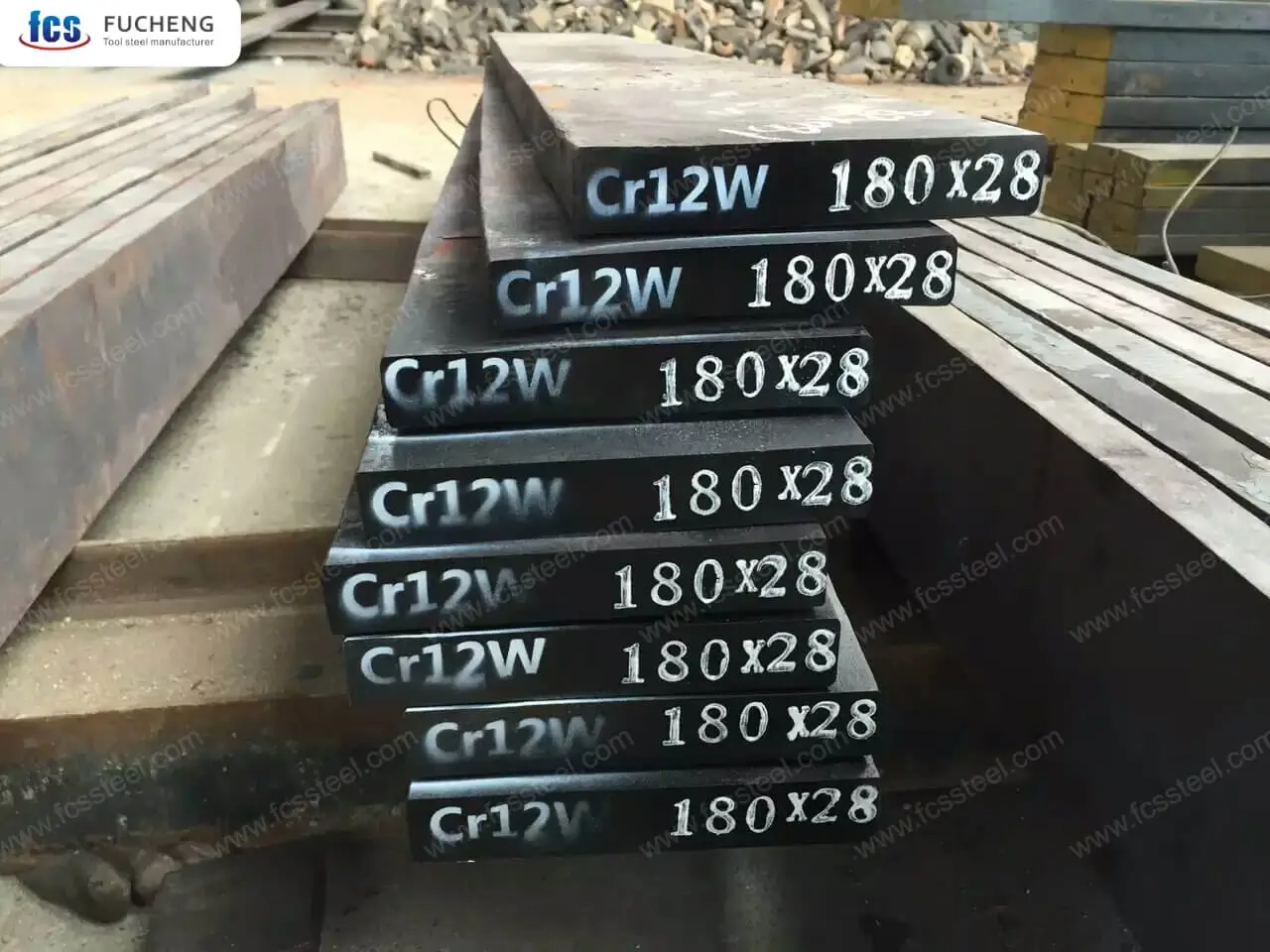

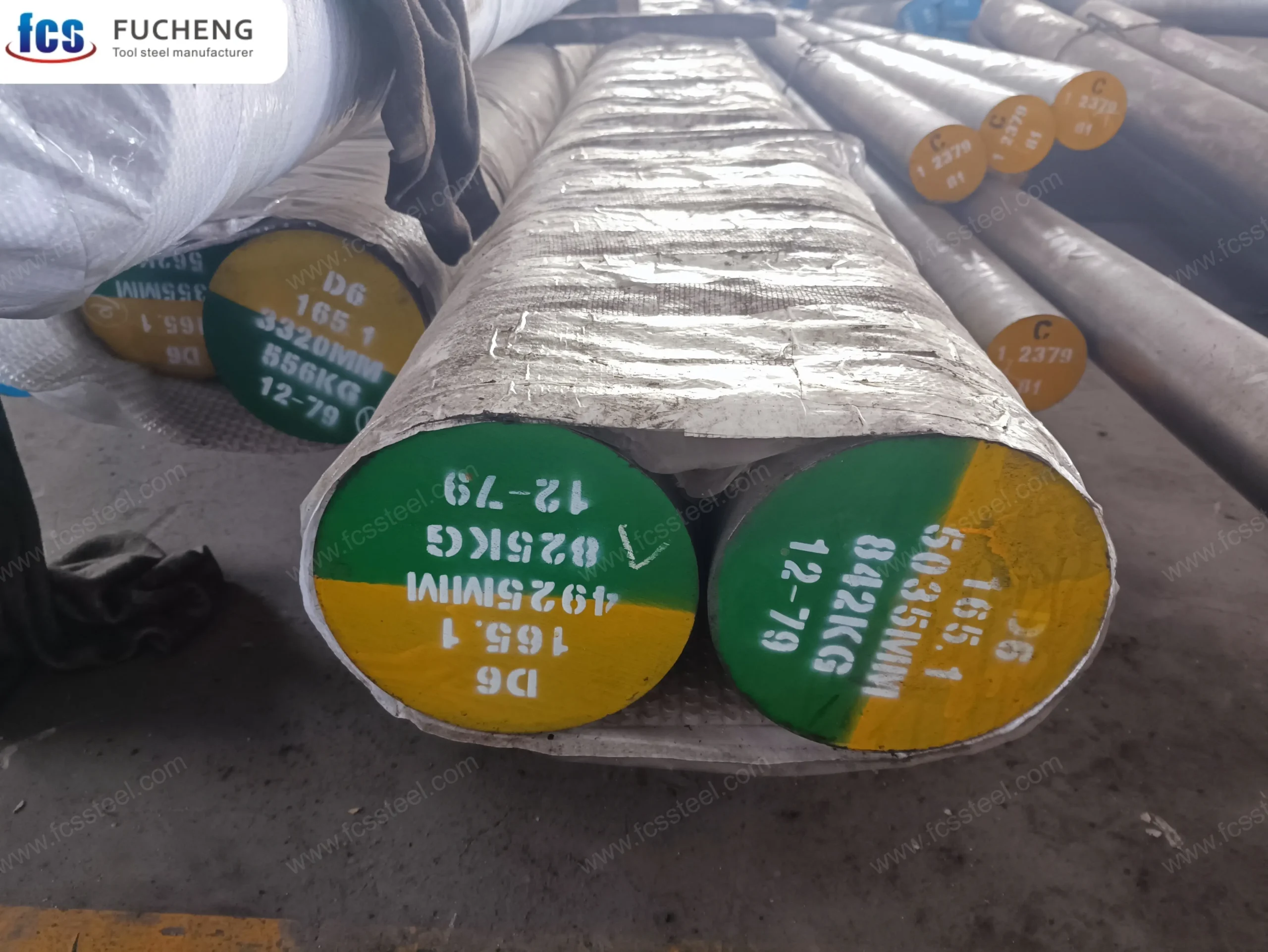

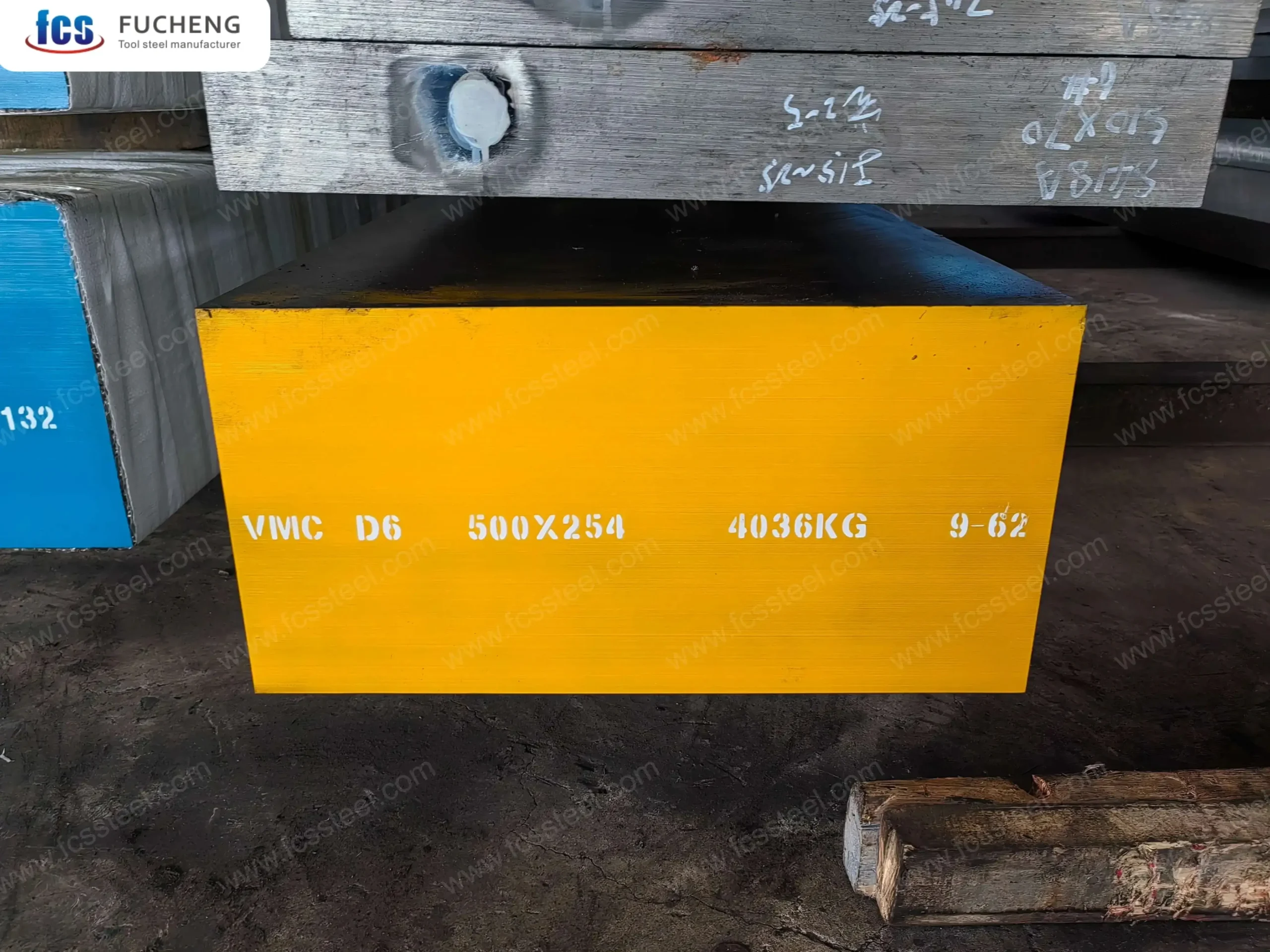

D6

TOOL STEEL GRADES

German(DIN/W-Nr):1.2436/X210CrW12
Japen(JIS):SKD2
U.S.A(ASTM):D6
Sweden(ASSAB):XW-5
Austria(BOHLER):K107

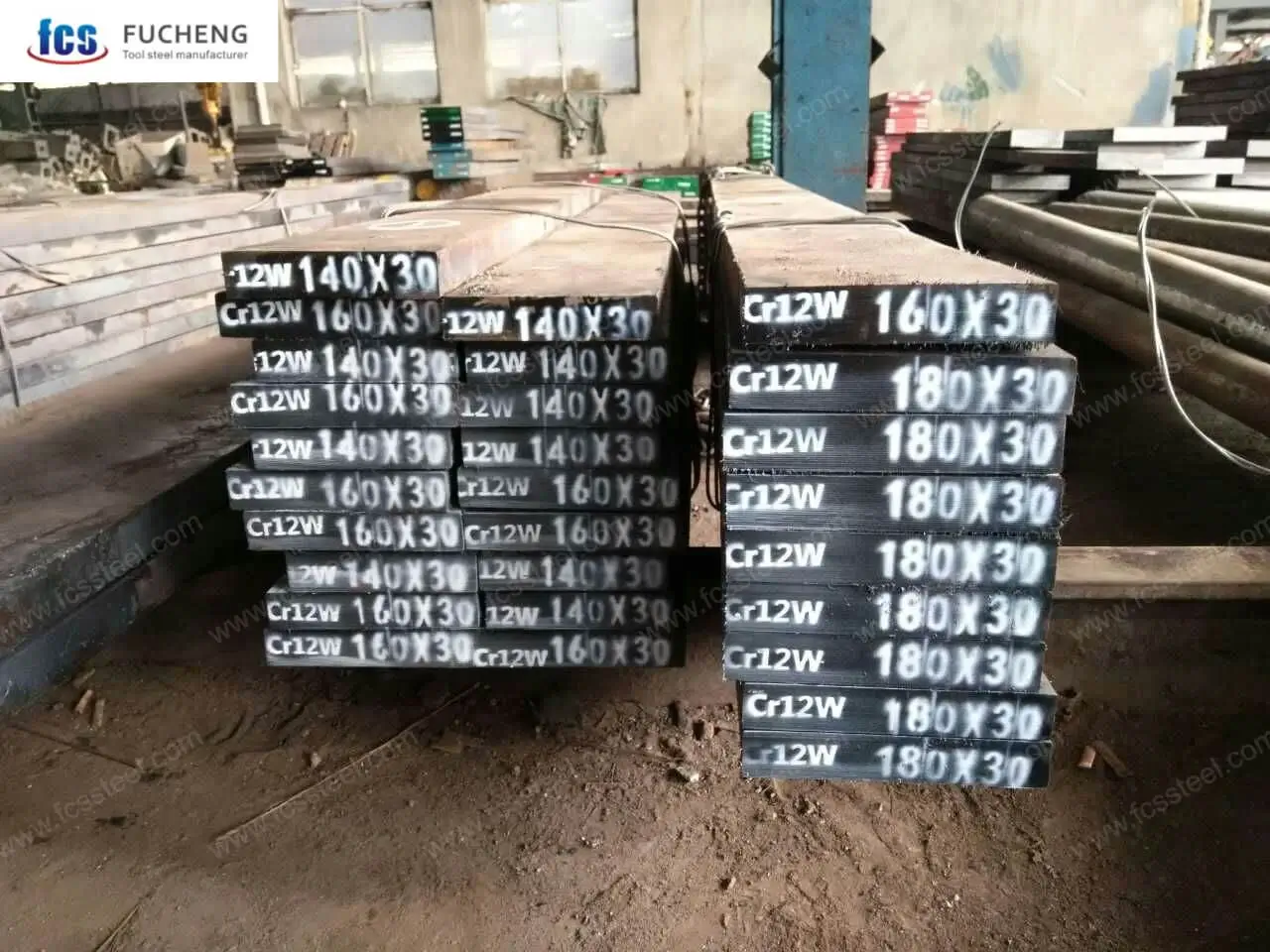

China(GB):Cr12W

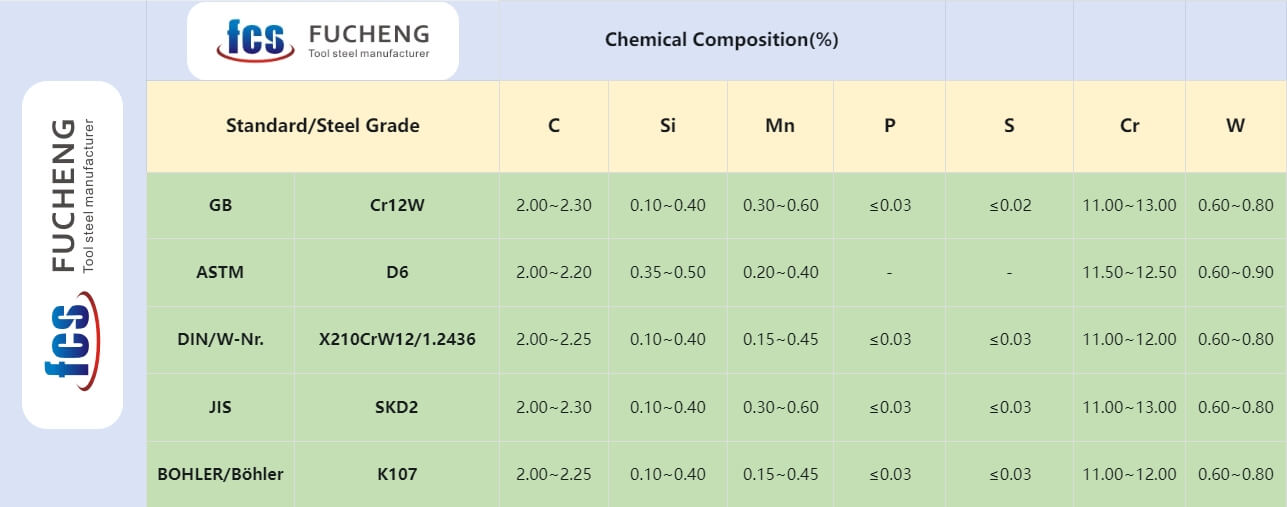

SKD2 & Its Equivalents

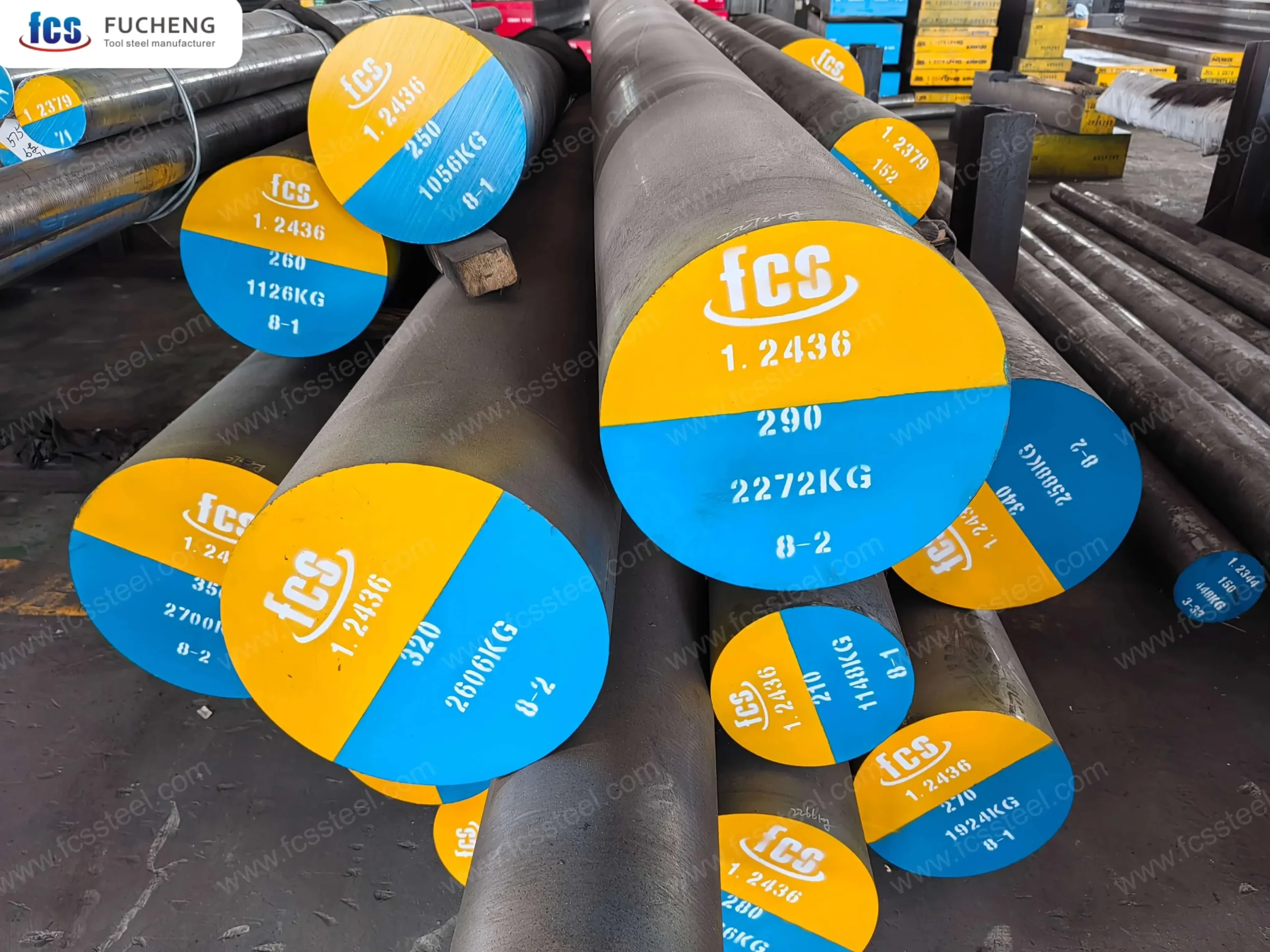

1.2436 Tool Steel (DIN/Germany), also designated as X210CrW12 or X12, is a high-carbon, high-chromium cold work steel containing 1.9–2.2% carbon and 11–13% chromium.

APPLICATION

This tool steel is highly suitable for a wide array of applications within the metalworking industry.
Cold stamping dies:As an ideal choice.Precision and durability are crucial during the process of shaping metal sheets under cold conditions.
In wire drawing dies:It enables the smooth and efficient transformation of wire through various diameters. Drawing dies benefit from its excellent wear – resistance properties when forming metal into different shapes.
For embossing dies:It is responsible for creating intricate surface patterns on metals, this steel grade provides the necessary strength and dimensional stability.
Wire rolling dies and wire rolling plates :Rely on its robust structure to withstand the high pressures and frictional forces involved in wire rolling operations.
Cold upsetting dies:Used to reshape metal by applying compressive forces, and cold extrusion dies, which push metal through a die cavity to create specific shapes, both find this tool steel to be an optimal material due to its outstanding resistance to wear, fatigue, and deformation.

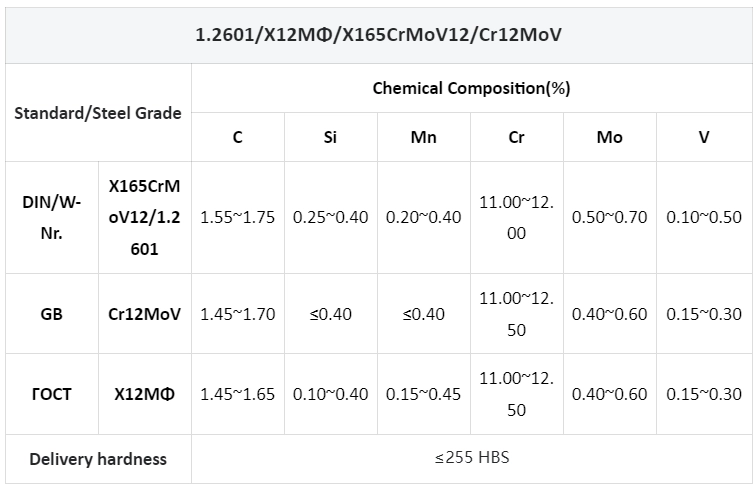

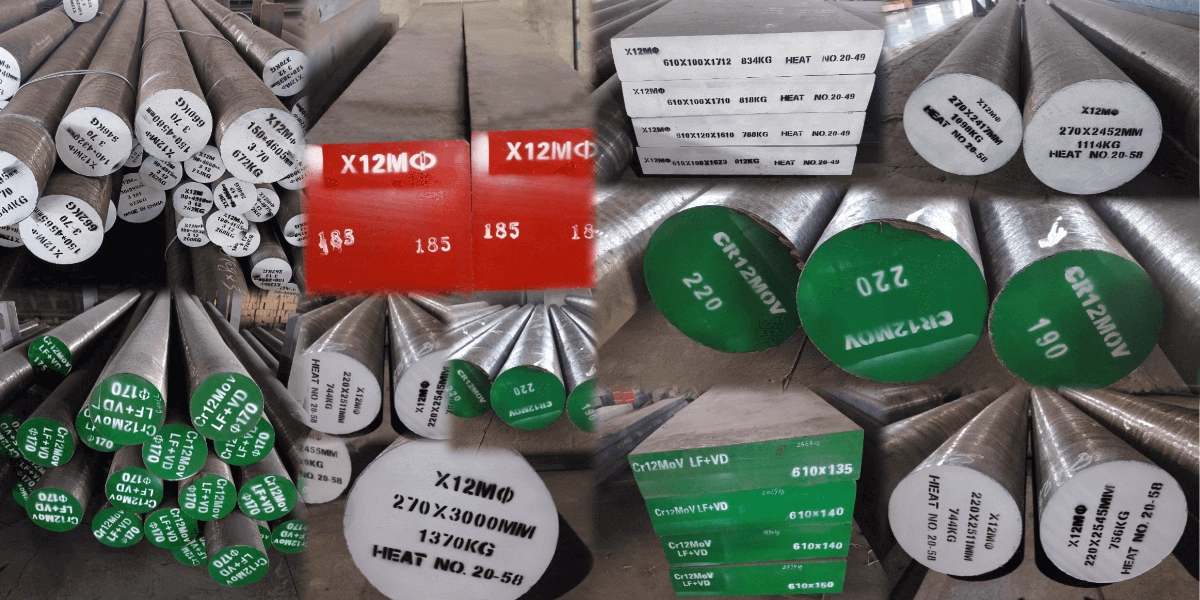

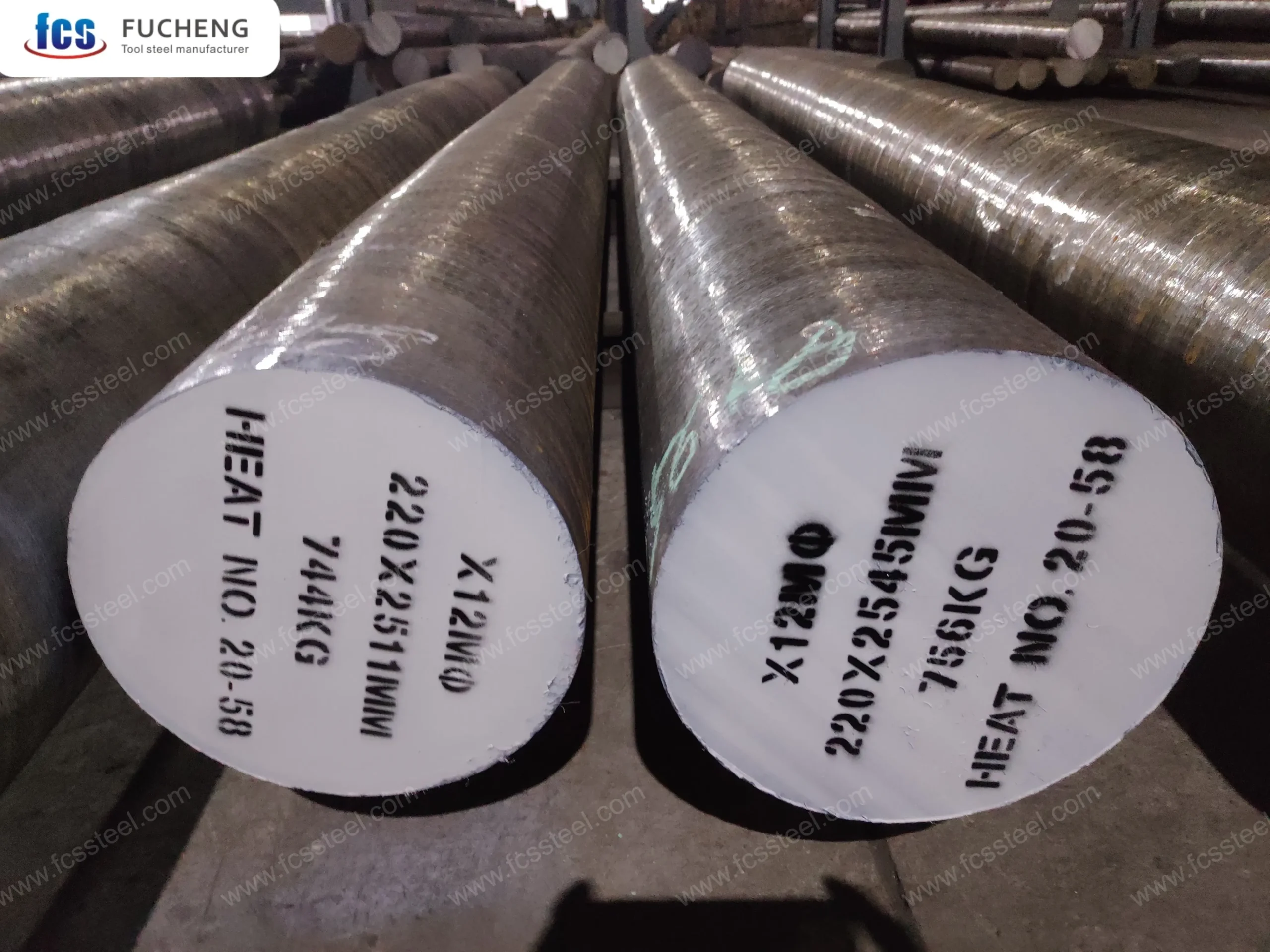

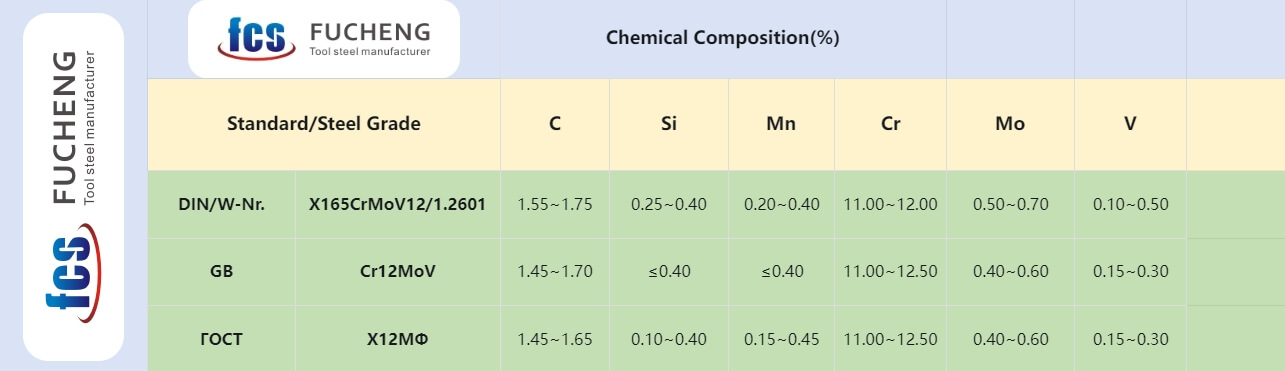

1.2601

TOOL STEEL GRADES

German(DIN/W-Nr):1.2601/X165CrMoV12

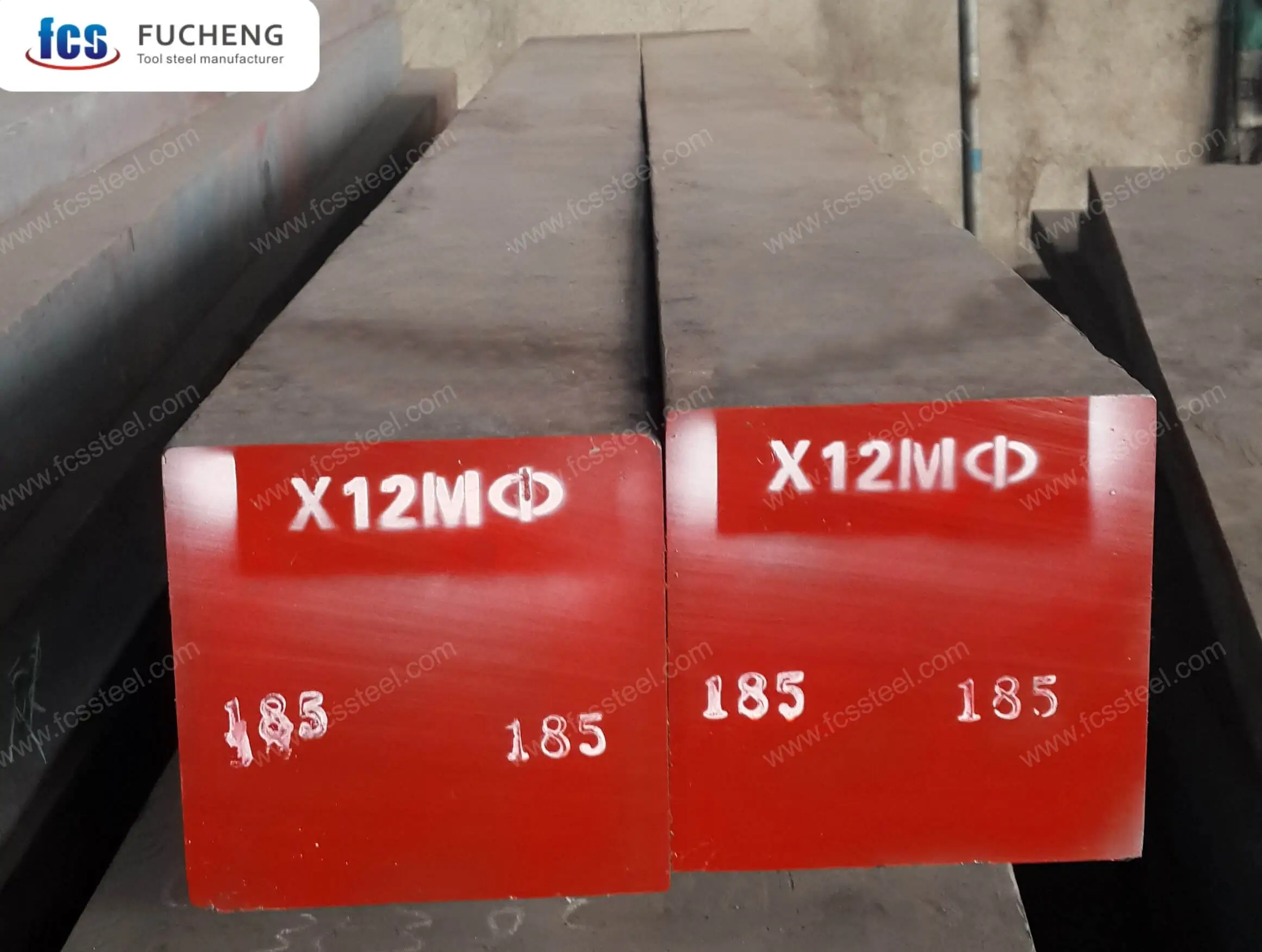

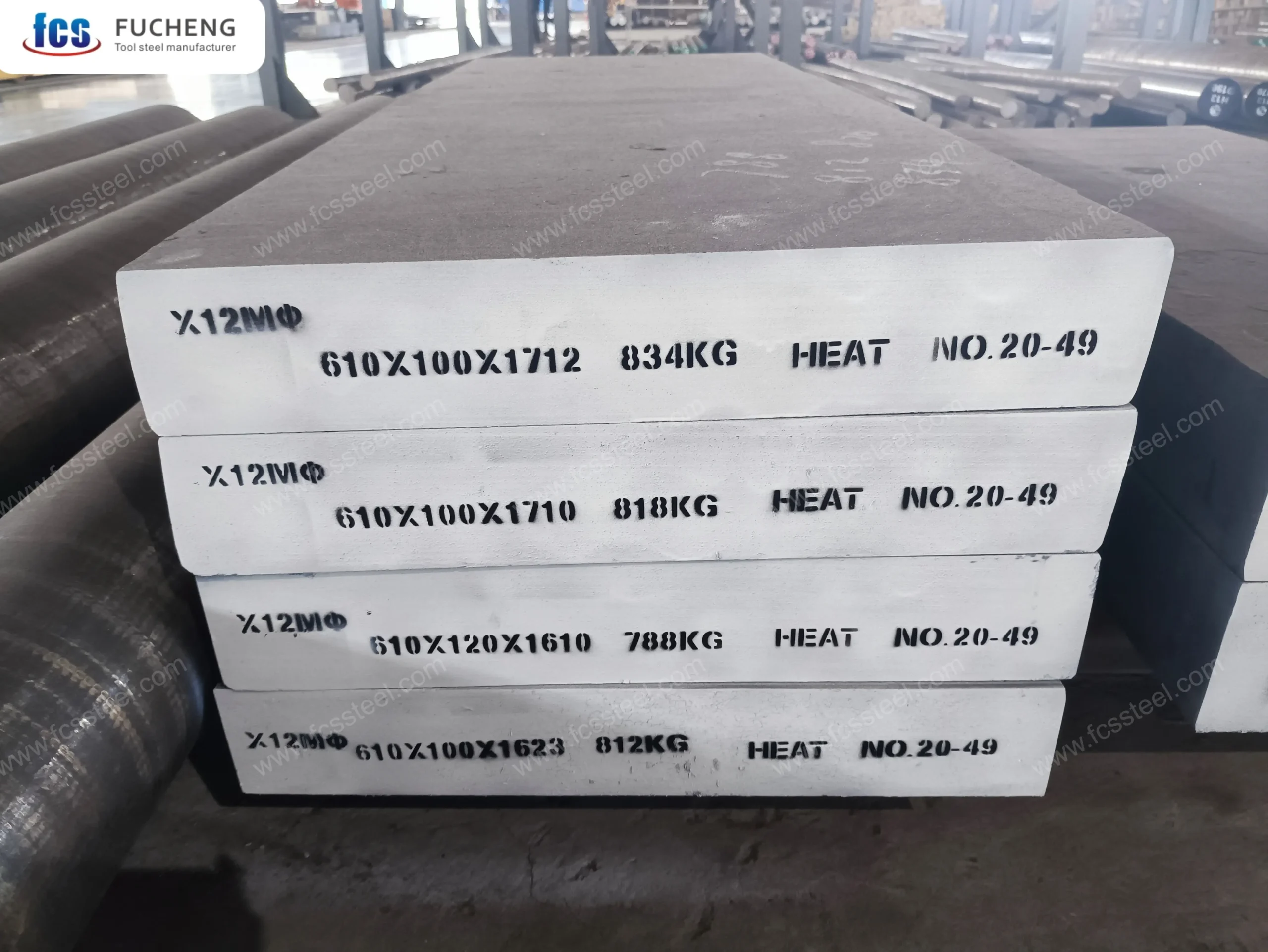

Russia(ГOСТ): X12MΦ
Austria(BOHLER):K100
China(GB):Cr12MoV

APPLICATION

This particular tool steel is specially designed for the manufacture of a wide range of cold stamping dies and tools. It caters to applications involving large section parts, complex geometries, and demanding working conditions. Examples include punching dies, trimming dies, rolling dies, steel plate deep drawing dies, circular saws, standard tool gauges, thread rolling dies, etc.

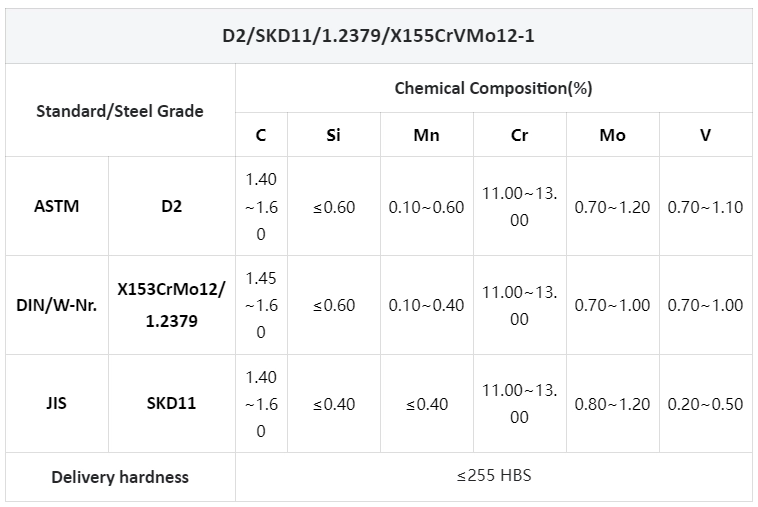

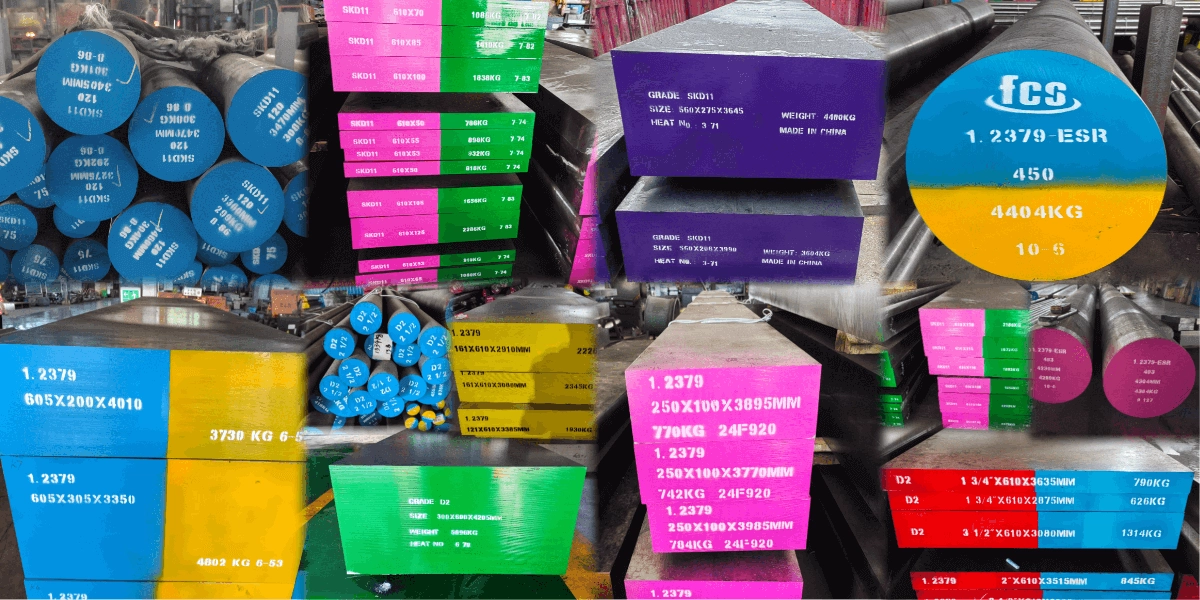

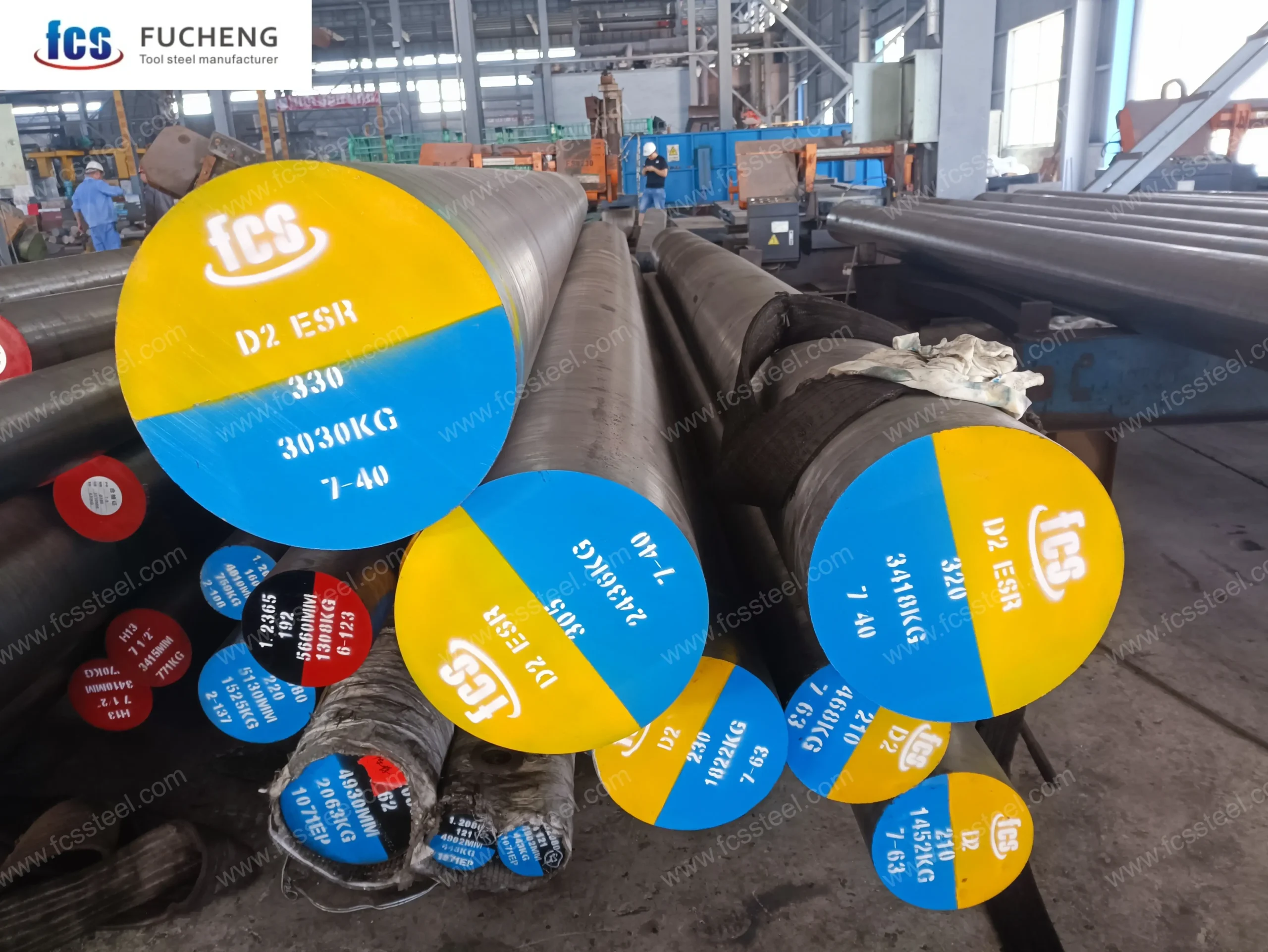

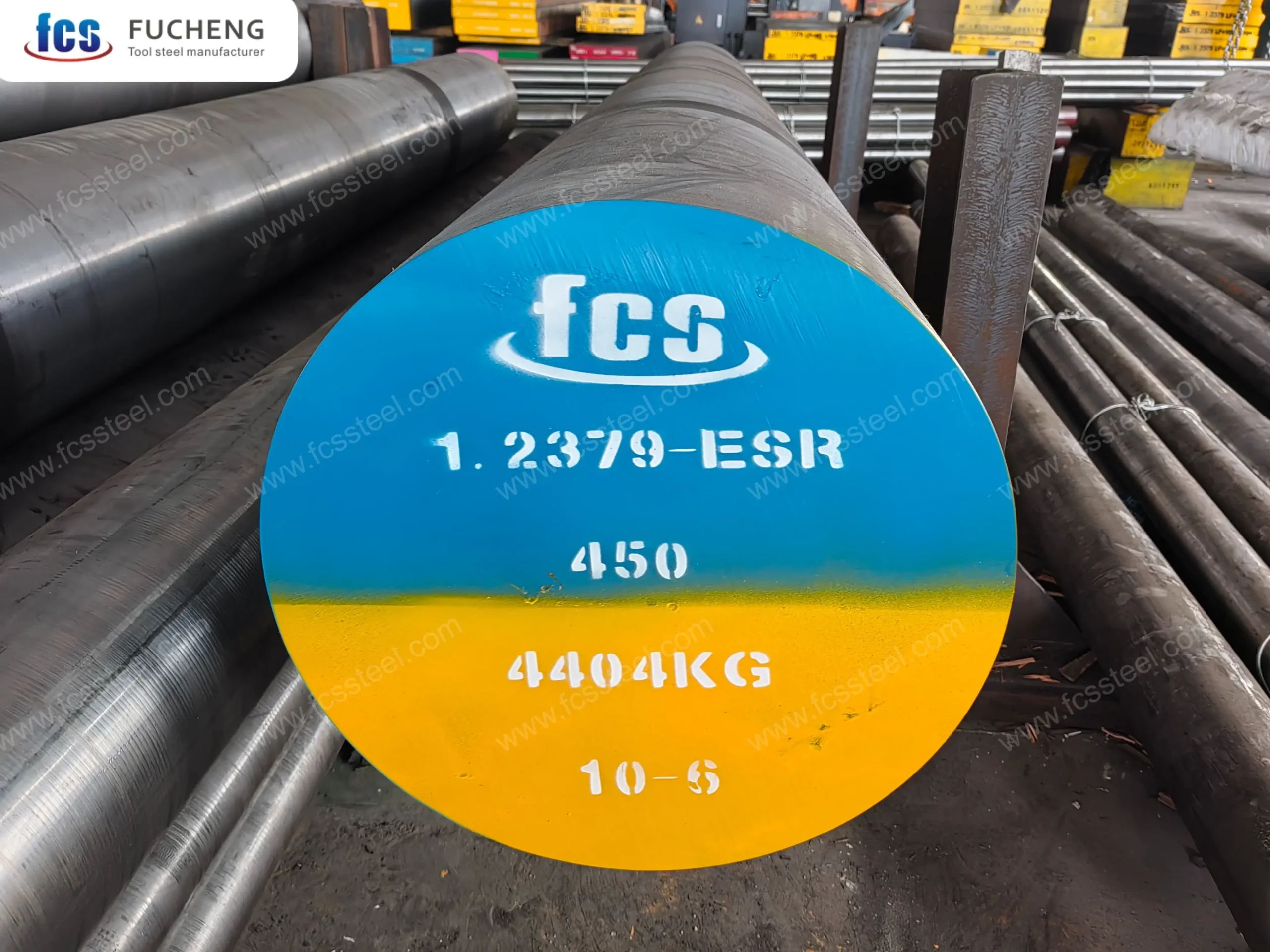

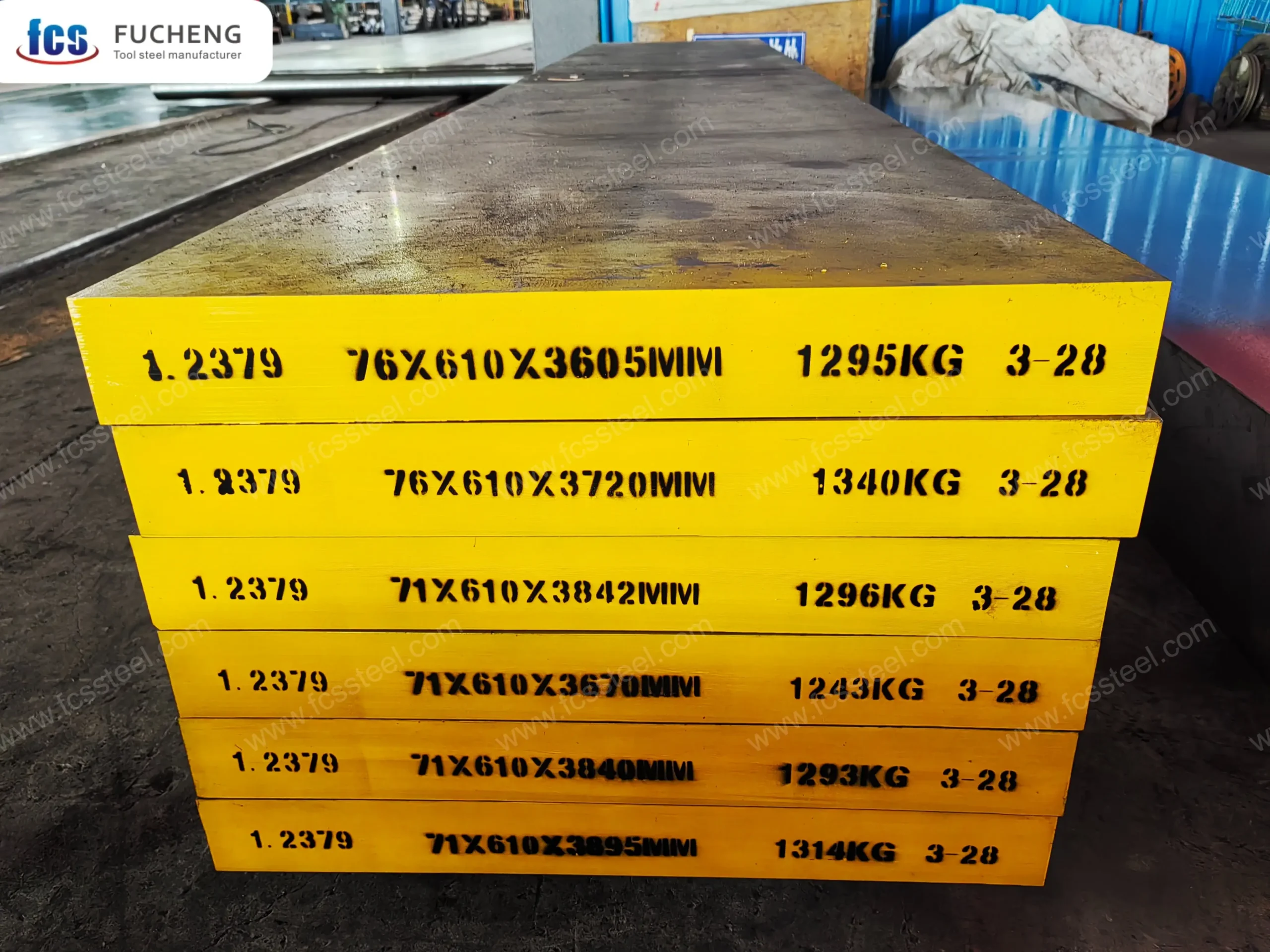

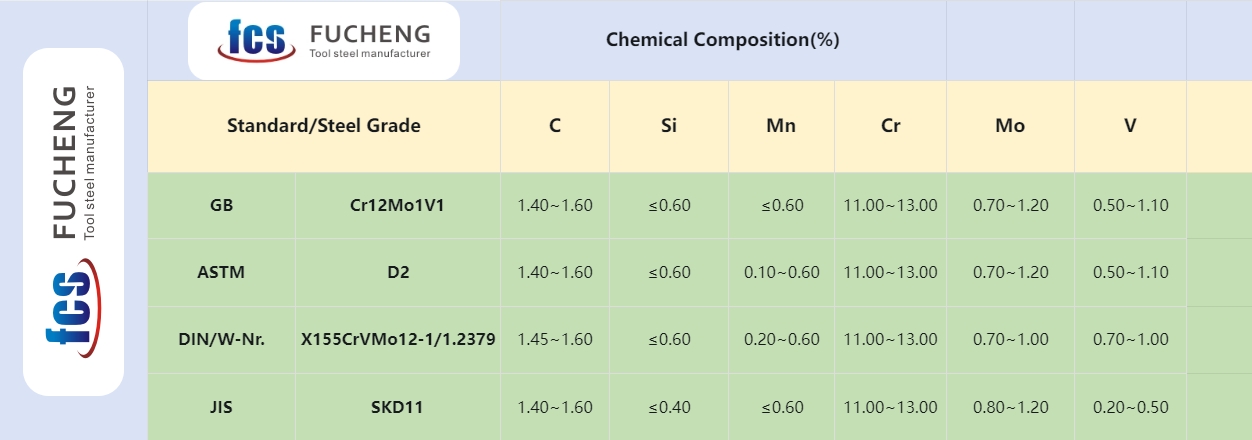

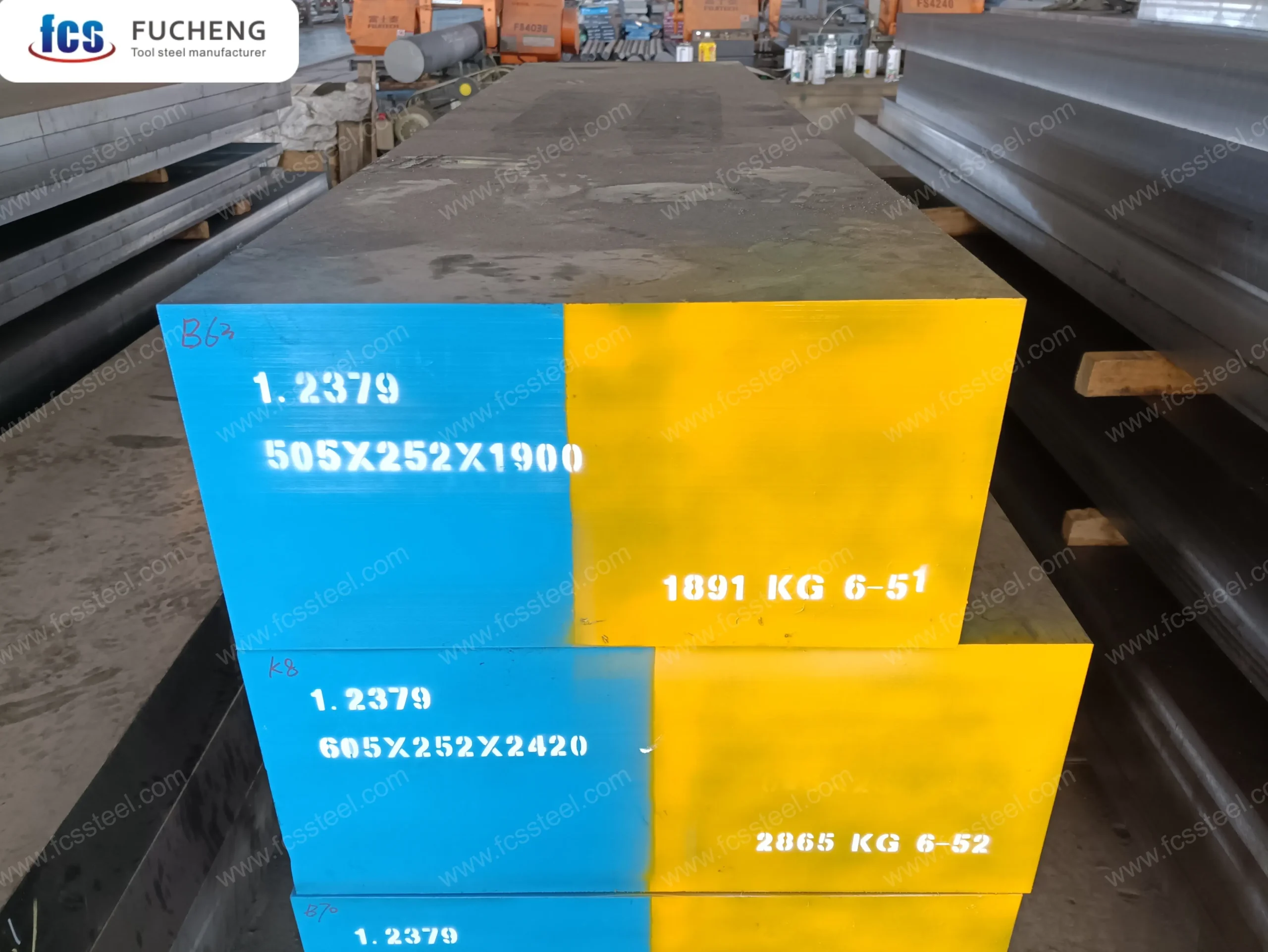

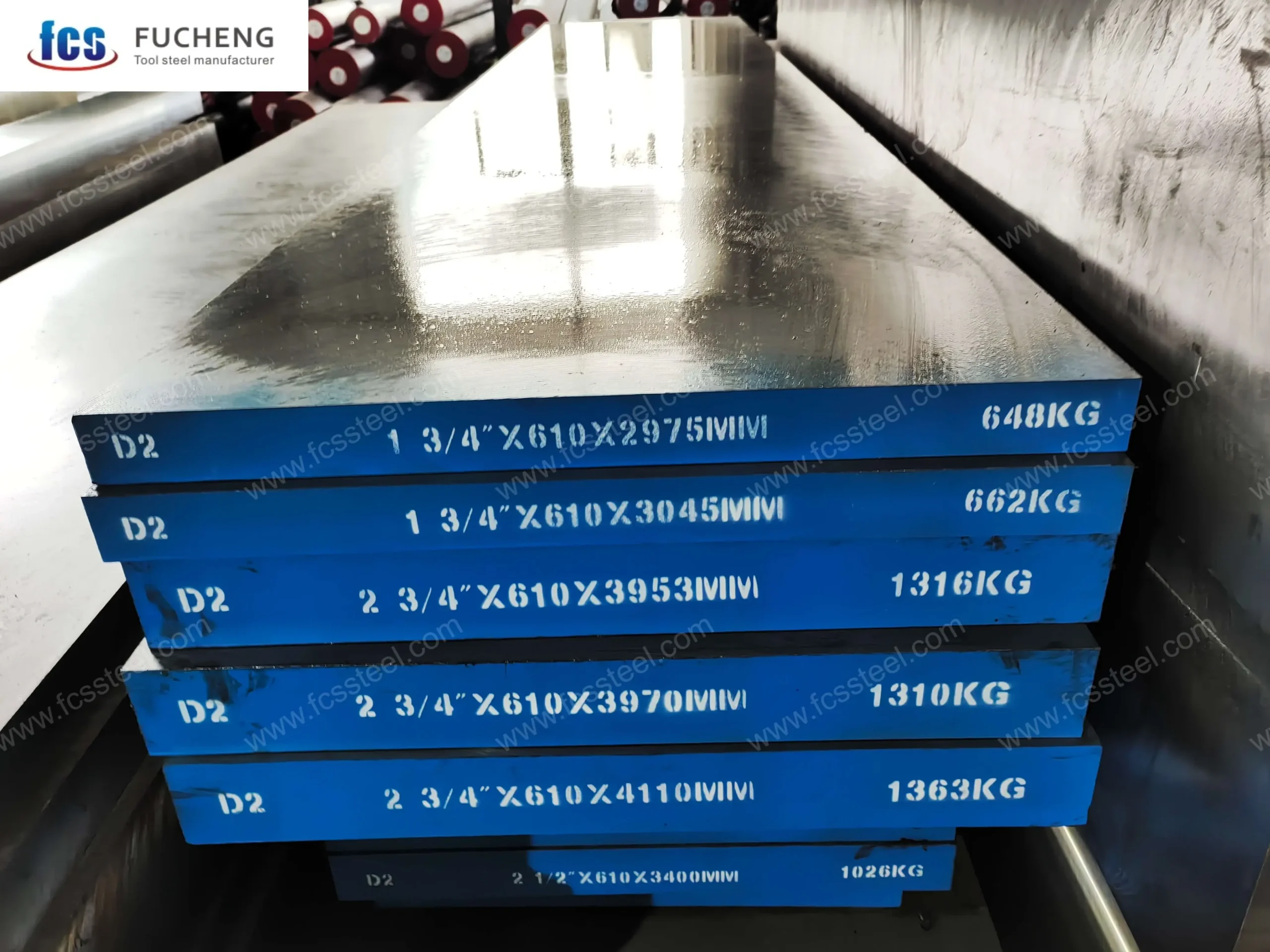

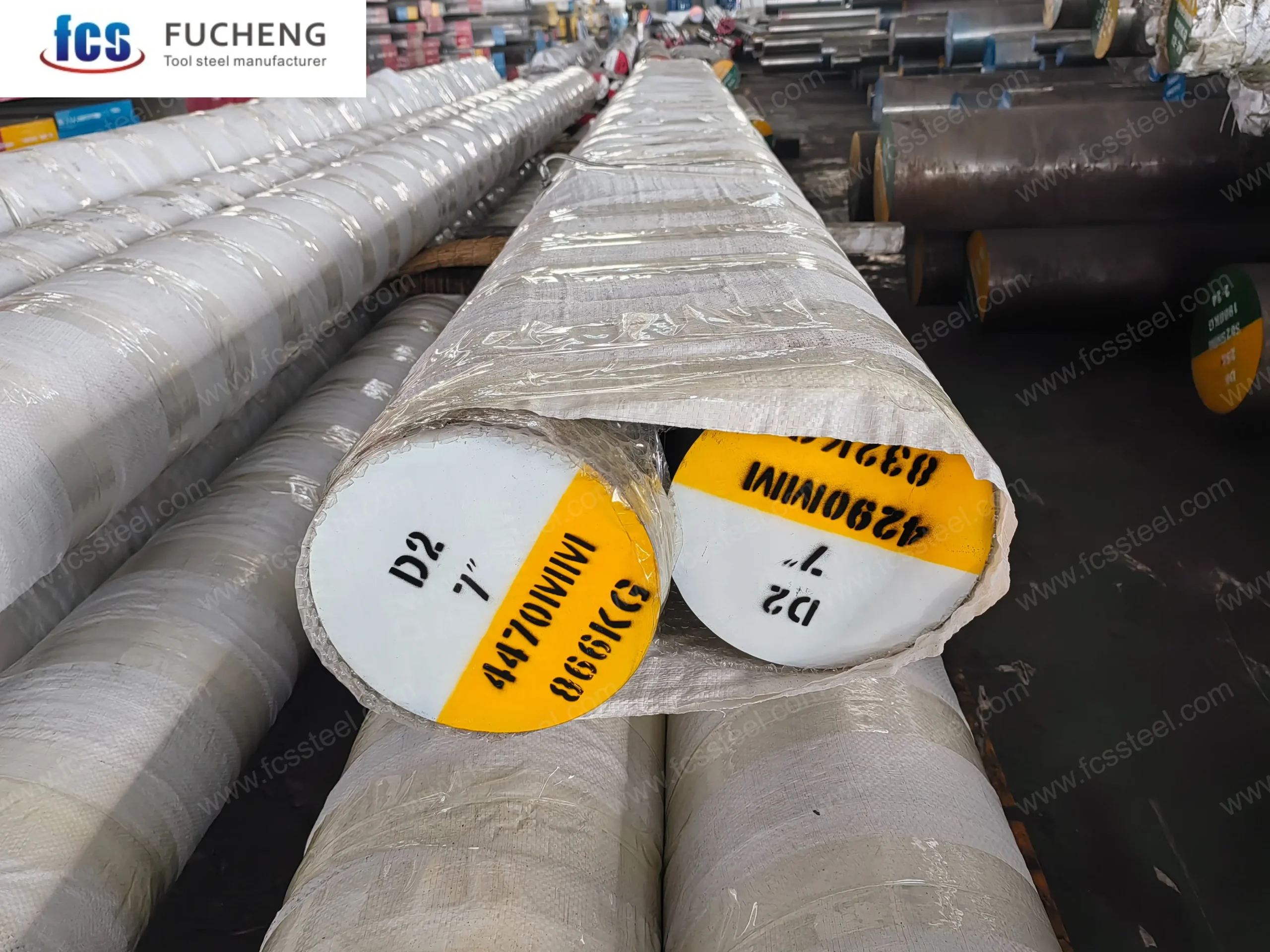

1.2379

TOOL STEEL GRADES
German(DIN/W-Nr):1.2379/X155CrVMo12-1
Japen(JIS):SKD11
U.S.A(ASTM):D2
Sweden(ASSAB): XW-42

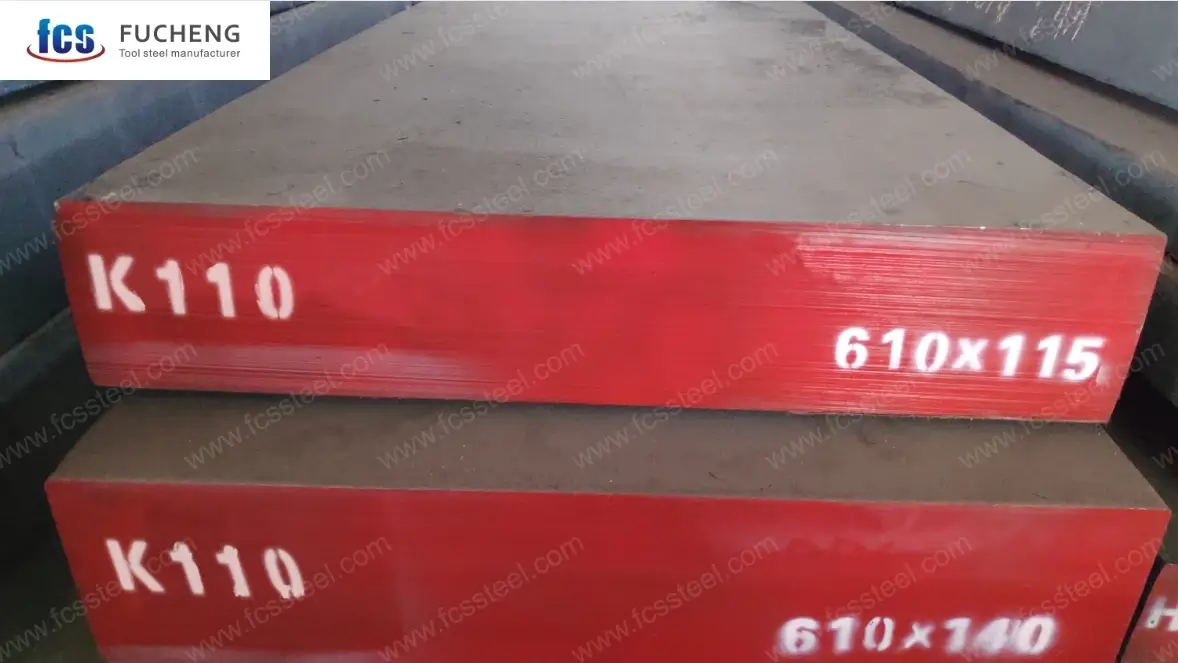

Austria(BOHLER):K110

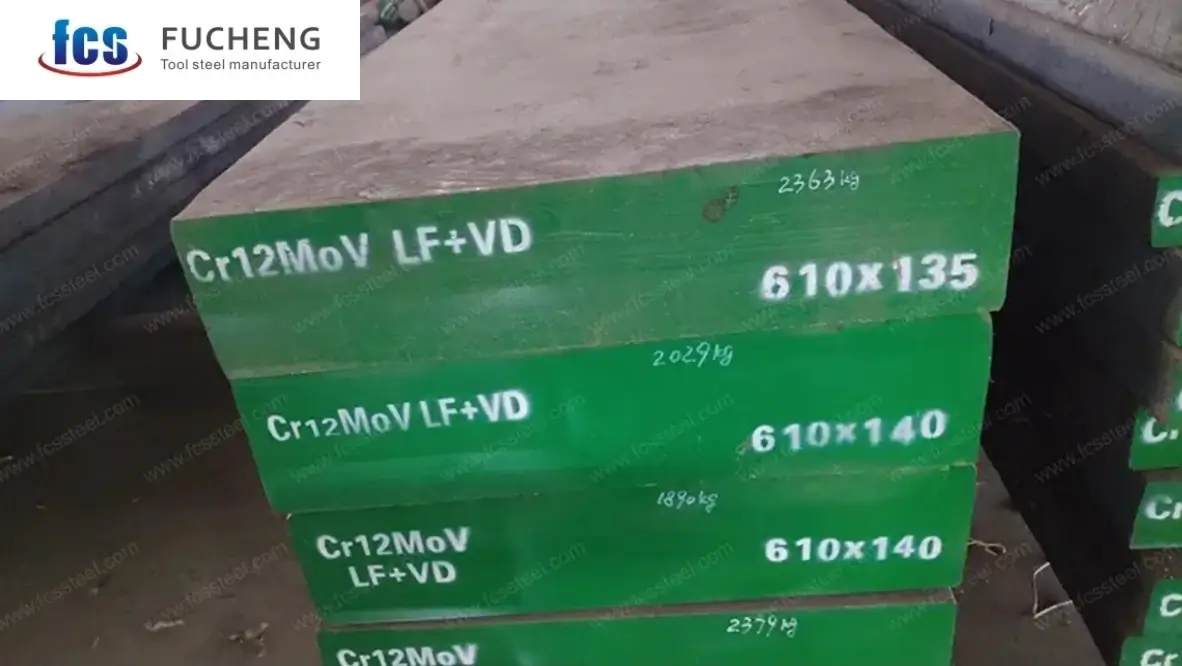

China(GB):Cr12Mo1V1

APPLICATION

This material is perfect for manufacturing large – cross– section, complex– shaped cold stamping dies.
It’s also suitable for cold cutting scissors, thread – taking plates, cold extrusion forming tools, and trimming dies.
Its versatility makes it an ideal choice across various cold – working applications where durability and precision are required.

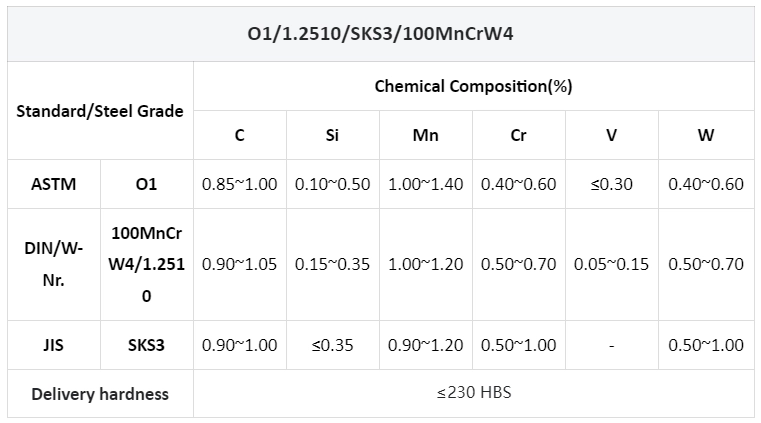

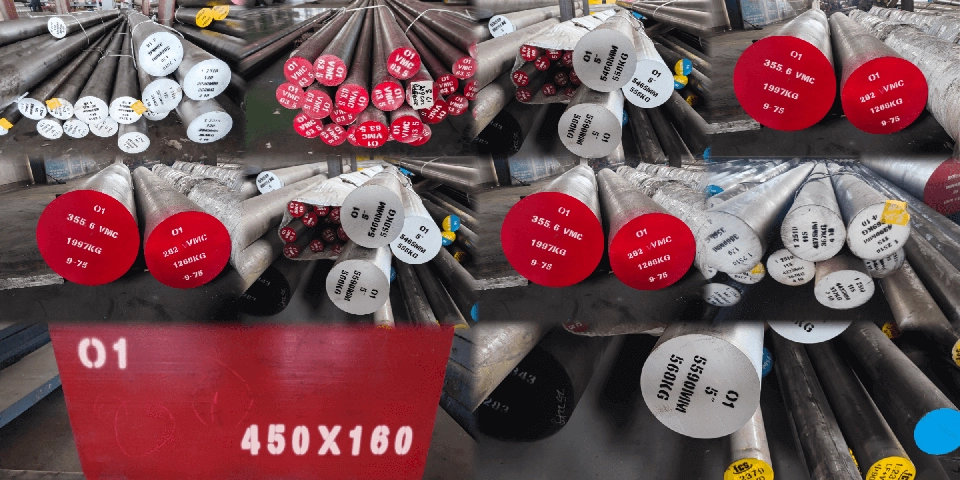

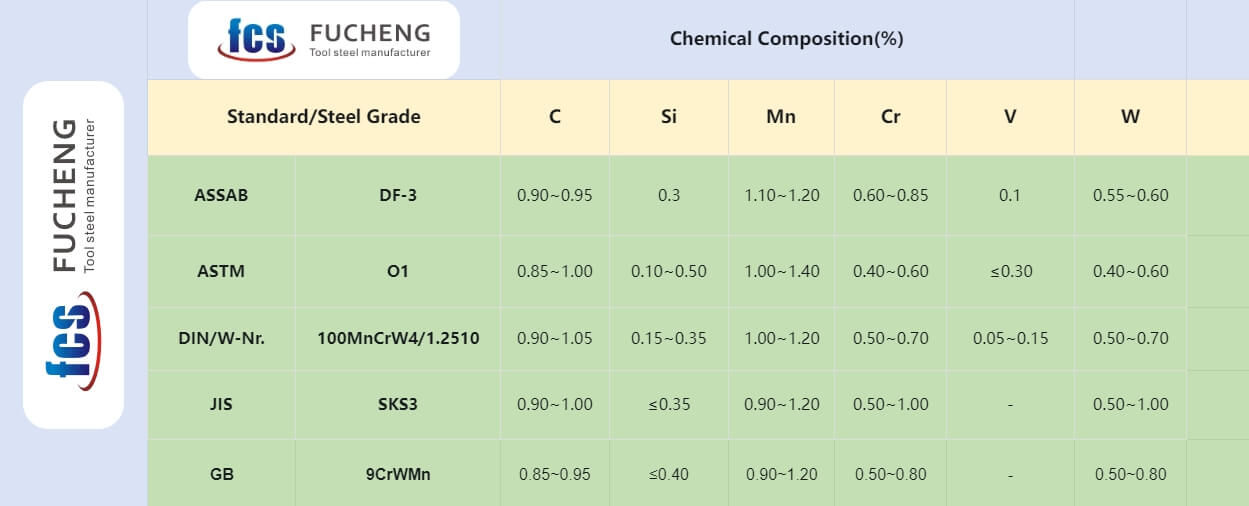

1.2510

TOOL STEEL GRADES
German(DIN/W-Nr):1.2510/100MnCrW4
Japen(JIS):SKS3
U.S.A(ASTM):O1
Russia(ГOСТ): 9XBГ
Sweden(ASSAB):DF-3
Austria(BOHLER):K460
China(GB):9CrWMn

APPLICATION

1.2510 tool steel is used a lot for blanking and punching dies. Its strength helps it handle heavy-duty tasks. This steel works well in applications needing long-lasting performance and precise cuts. It’s commonly chosen for manufacturing dies due to its reliability in tough conditions.

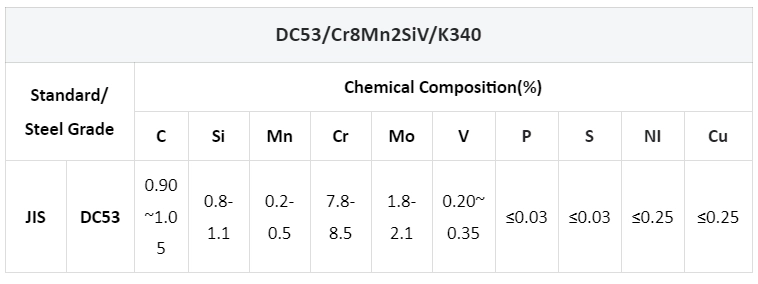

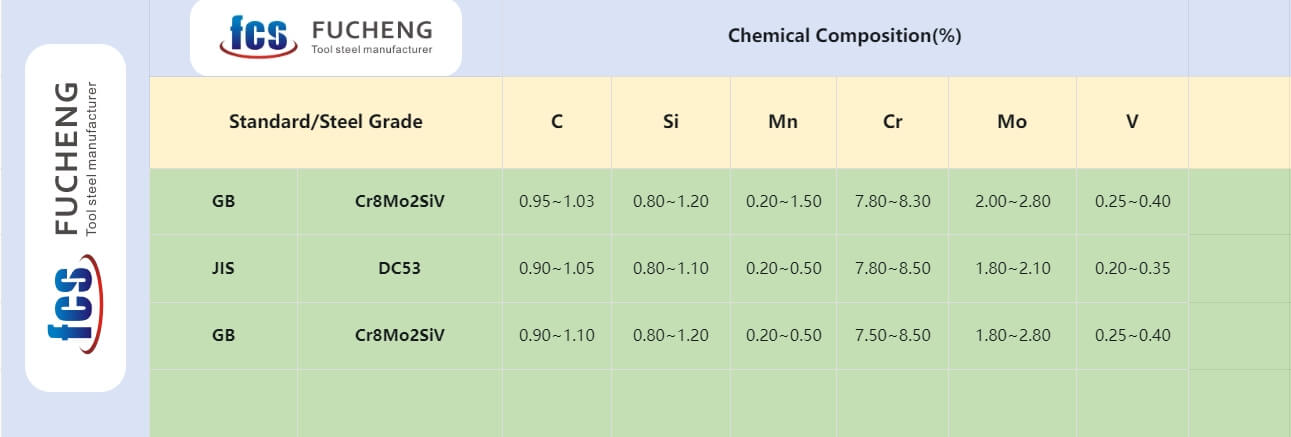

DC53

TOOL STEEL GRADES

TOOL STEEL GRADES
Japen(JIS):DC53
Austria(BOHLER):K340
China(GB):Cr8Mn2SiV

APPLICATION

It is widely used in manufacturing dies and tools for demanding cold-forming processes. It excels in applications like blanking, cold forging, and deep drawing due to its high hardness and wear resistance. Common uses include punches, forming rolls, and precision stamping dies for wire cutting. This steel also works well in cold extrusion and rolling operations, where it withstands heavy loads and maintains dimensional stability. Its toughness makes it ideal for cutting tools in high-speed punching and forming difficult materials like stainless steel or titanium.

Why Choos FCS Cold WOrk Tool Steel

Fast delivery
Our advanced manufacturing facility is equipped with a complete and efficient production line, allowing us to offer the fastest delivery times in the industry—often within just one month. Additionally, our extensive inventory ensures that we can meet your needs promptly.
Global

We proudly serve a diverse clientele across the globe, including customers in Southeast Asia, Europe, the Americas, the Middle East, and more. Our extensive partnerships reflect our commitment to delivering high-quality die steel and tool steel tailored to meet the unique needs of each market.


CUTTING-EDGE TECHNOLOGY

FCS tool steel adopts electric arc furnace refining + vacuum degassing technology to ensure material purity and composition uniformity, impurity control up to international standards (such as DIN 1.2379, JIS SKD11).

High packaging safety

We prioritize the safety and integrity of our products during transportation and storage to ensure maximum protection of our die and tool steels. Strong bundling: Our materials are professionally bundled to withstand the rigor of transportation and handling. This approach not only prevents damage, but also makes storage and inventory management much easier.Customizable PVC packaging: Choose from a variety of vibrant PVC color options tailored to your specifications. Whether you need color coding for easy identification or need specific branding requirements, our flexible packaging solutions have you covered.

Multinational standard cold work tool steels
We specialize in supplying high-quality cold work tool steels that meet a variety of international standards. Our extensive range includes materials compliant with:USA: ASTM/AISI,Russia: ГОСТ,Japan: JIS;Germany: DIN/W-Nr,Sweden: ASSAB,Austria: BOHLER,China: GB,Europe: EN/ISO.
Our cold work tool steels are engineered to deliver superior performance and durability for diverse applications, from manufacturing to tool production. Whether your project requires specific grades or custom solutions, our dedicated team is here to assist you in selecting the perfect steel for your needs.
Quality assurance
When choosing cold working tool steel, quality is the most important thing. We provide comprehensive testing to ensure that our products meet the highest standards. Our quality assurance procedures include:Chemical Composition Analysis、Hardness Testing、Flaw Detection、Surface Condition Evaluations、Dimensional Accuracy Checks、Non-Metallic Inclusions Assessment、Eutectic Carbides Examination、To alleviate any concerns you may have.
